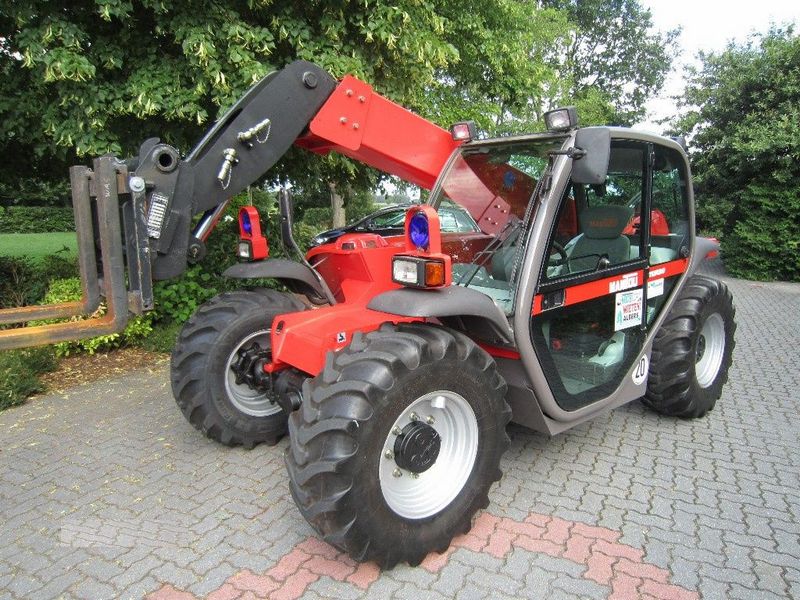

Manitou MVT 628 T
Browse All Manitou or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 14.54 ft in (4430 mm) |
| Ground Clearance | 13.98 ft in (355 mm) |
| Width Over Tires | 6.53 ft in (1990 mm) |
| Overall Height | 7.35 ft in (2240 mm) |
| Wheelbase | 9.03 ft in (2750 mm) |
| Turning Radius Outside Tires | 12.83 ft in (3910 mm) |
Lift
| Max Lift Height | 20.67 ft in (6300 mm) |
| Max Forward Reach | 11.59 ft in (3530 mm) |
| Max Load At Max Reach | 2094.4 lb (950 kg) |
| Max Load At Max Height | 5511.56 lb (2500 kg) |
| Max Lift Capacity | 6172.95 lb (2800 kg) |
Engine
| Engine Make | 2351 |
| Engine Model | 1104 C.44 T |
| Gross Power | 100 hp (74.5 kw) |
| Max Torque | 303.9 lb ft (412 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 268.6 cu in (4.4 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 12345.9 lb (5600 kg) |
| Fuel Capacity | 25.1 gal (95 L) |
| Hydraulic System Fluid Capacity | 21.2 gal (80 L) |
| Drawbar Pull | 12822.8 lb (5816.3 kg) |
| Tire Size | 16/70-20 10PR |
Transmission
| Transmission Type | hydrostatic |
| Max Speed - Forward | 21 mph (33.8 km/h) |
Hydraulic
| Pump Type | gear pump |
| Pump Flow Capacity | 21.2 gal/min (80 L/min) |
| Relief Valve Pressure | 3408.4 psi (23500 kPa) |
