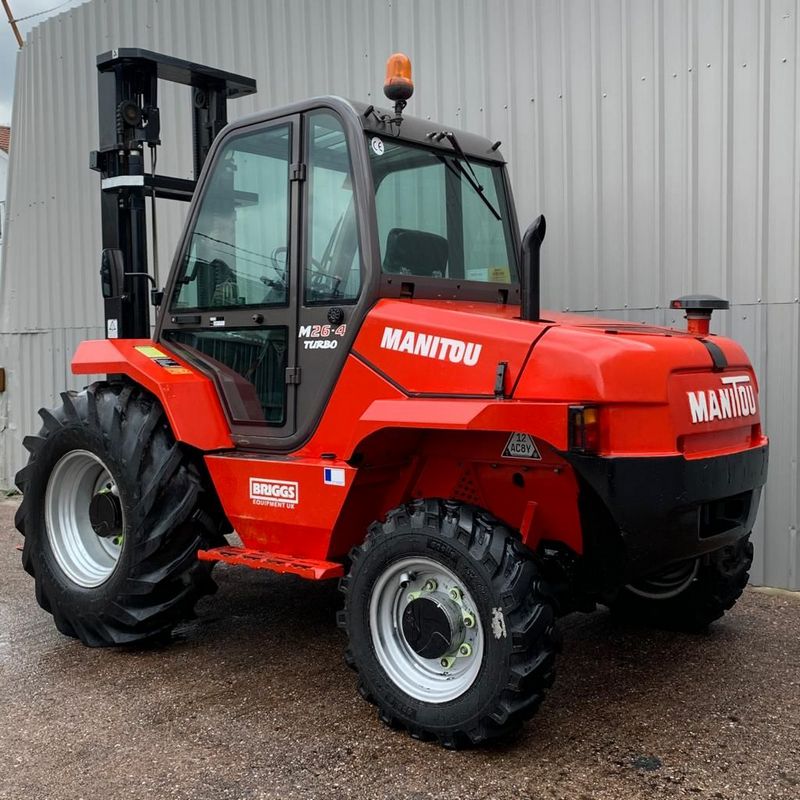

Manitou M26.4
Contents:
Dimensions
| Length To Fork Face | 3.94 ft in (1200 mm) |
| Overall Width | 6.3 ft in (1920 mm) |
| Overall Height - Mast Lowered | 8.96 ft in (2730 mm) |
| Wheelbase | 6.53 ft in (1990 mm) |
| Ground Clearance | 15.36 in (390 mm) |
| Height To Top Of Overhead Guard | 8.34 ft in (2540 mm) |
| Max Fork Height | 12.14 ft in (3700 mm) |
| Turning Radius | 14.01 ft in (4270 mm) |
Mast
| Mast Tip Forward | 6 degrees |
| Mast Tip Rear | 12 degrees |
| Number Of Mast Sections | 1 |
| Load Center | 19.69 in (500 mm) |
| Load Capacity | 5732.02 lb (2600 kg) |
| Max Fork Spread | 57.88 in (1470 mm) |
Engine
| Engine Make | 2351 |
| Engine Model | Euro 2 1104C 44 |
| Power | 75 hp (56 kw) |
| Torque | 234.6 lb ft (318 Nm) |
| Power Measured @ | 1400 rpm |
| Displacement | 268.6 cu in (4.4 L) |
| Fuel Type | Direct |
| Injection | Water |
Operational
| Operating Weight | 12963.2 lb (5880 kg) |
| Tire Type | FRWD- 400/70-20 150B T37 STAB TL,Backward-10.5/80-18 10PR TG42 TL |
| Number Of Front Wheels | 2 |
| Number Of Rear Wheels | 2 |
| Max Speed | 13.5 mph (21.6 km/h) |
