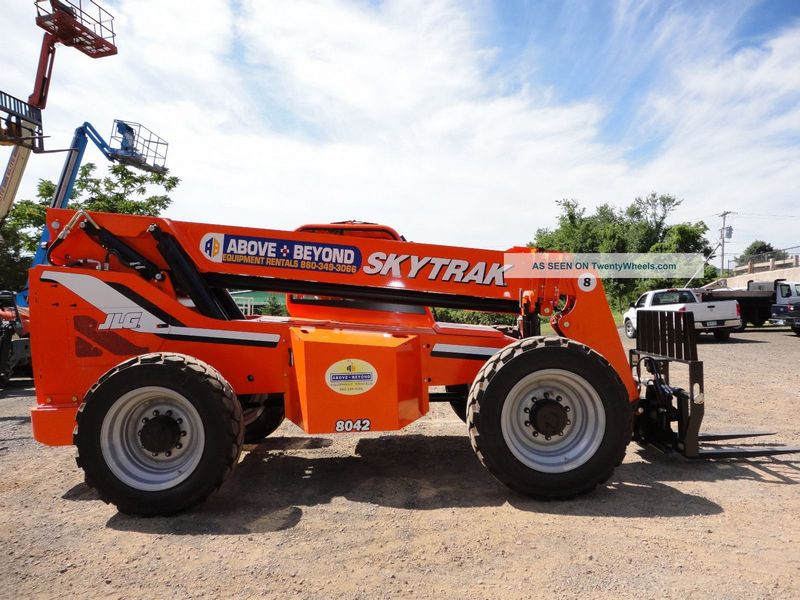

JLG 8042
Contents:
| Ground Clearance | 1.6 ft in (487.68 mm) |
| Overall Height | 8.31 ft in (2529.84 mm) |
| Wheelbase | 10 ft in (3048 mm) |
| Width | 8.31 ft in (2529.84 mm) |
| Overall Length | 19 ft in (5791.2 mm) |
| Max Lift Height | 41 ft in (12496.8 mm) |
| Max Load At Max Reach | 2200 lb (997.91 kg) |
| Load Center | 2 ft in (0.61 m) |
| Max Lift Capacity | 8000 lb (3628.74 kg) |
| Max Load At Max Height | 6000 lb (2721.56 kg) |
| Engine Model | QSF3.8L Tier 4 Final |
| Gross Power | 110 hp (82.1 kw) |
| Power Measured @ | 1500 rpm |
| Fuel Tank | 35 gal (132.5 L) |
| Drawbar Pull | 25000 lb (11339.9 kg) |
| Tire Size | 370/75-28 |
| Maximum Lift | 15 sec |
| Maximum Lower | 13 sec |
| Maximum Telescope In | 14.2 sec |
| Maximum Telescope Out | 16.5 sec |
| Maximum Travel | 19 mph (30.6 km/h) |
| Transmission Type | Powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Operating Weight | 27100 lb (12292.4 kg) |
| Pump Type | Var Load Sensing Piston |
| Front | High Bias, Limited Slip |
| Rear | Oscillating |
| Brakes Type | Wet Multi-Disc |
