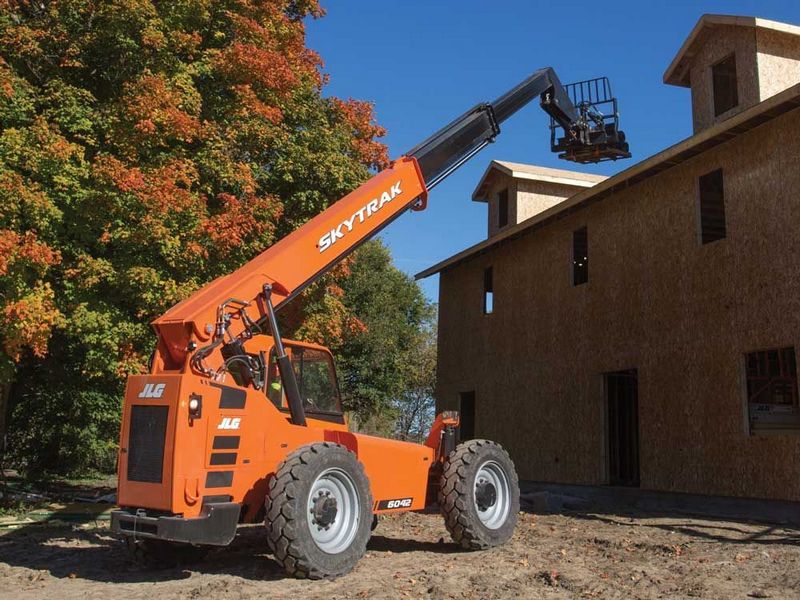

JLG 6042
Browse All JLG or Telescopic Forklift Models
Contents:
Dimensions
| Ground Clearance | 1.3 ft in (396.24 mm) |
| Overall Height | 8.6 ft in (2621.29 mm) |
| Wheelbase | 9.5 ft in (2895.6 mm) |
| Width | 8.31 ft in (2529.84 mm) |
| Overall Length | 19.61 ft in (5974.08 mm) |
Lift
| Max Lift Height | 41.11 ft in (12530.33 mm) |
| Max Load At Max Reach | 1400 lb (635.03 kg) |
| Load Center | 2 ft in (0.61 m) |
| Max Lift Capacity | 6000 lb (2721.56 kg) |
| Max Load At Max Height | 6000 lb (2721.56 kg) |
Engine
| Engine Model | QSF3.8L Tier 4 Final |
| Gross Power | 74 hp (55.2 kw) |
| Power Measured @ | 1400 rpm |
Capacities
| Fuel Tank | 35 gal (132.5 L) |
Operational
| Drawbar Pull | 22000 lb (9979.1 kg) |
| Tire Size | 370/75-28 |
Performance
| Maximum Lift | 14.3 sec |
| Maximum Lower | 10.5 sec |
| Maximum Telescope In | 17.2 sec |
| Maximum Telescope Out | 17 sec |
| Maximum Travel | 19 mph (30.6 km/h) |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
Weights
| Operating Weight | 25100 lb (11385.2 kg) |
Axles
| Front | High Bias, Limited Slip |
| Rear | Oscillating |
Brakes
| Brakes Type | Wet Multi-Disc |
