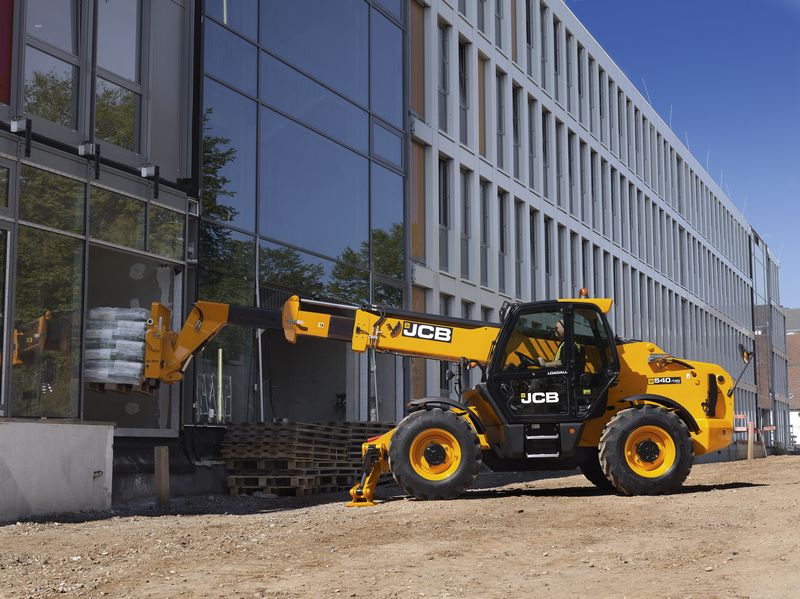

JCB 540-140
Browse All JCB or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 20.51 ft in (6250 mm) |
| Ground Clearance | 1.17 ft in (355 mm) |
| Width Over Tires | 7.71 ft in (2350 mm) |
| Overall Height | 8.5 ft in (2590 mm) |
| Wheelbase | 9.52 ft in (2900 mm) |
| Dump Angle | 9.81 degrees |
| Lift Capacity To Full Height | 4409.25 lb (2000 kg) |
| Turning Radius Outside Tires | 13.46 ft in (4100 mm) |
| Weight | 24449.27 lb (11090 kg) |
Lift
| Max Lift Height | 33.54 ft in (10220 mm) |
| Max Forward Reach | 30.35 ft in (9250 mm) |
| Max Lift Capacity | 8818.49 lb (4000 kg) |
| Max Load At Max Height | 7275.26 lb (3300 kg) |
| Max Load At Max Reach | 2314.86 lb (1050 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2257 |
| Engine Model | JCB EcoMAX T4i/IIIB |
| Gross Power | 85 hp (63.4 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 236.1 lb ft (320 Nm) |
| Torque Measured @ | 1200 rpm |
| Displacement | 268.6 cu in (4.4 L) |
| Aspiration | turbocharged cooled |
Operational
| Operating Weight | 8818.5 lb (4000 kg) |
| Fuel Capacity | 33.1 gal (125 L) |
| Hydraulic System Fluid Capacity | 34.7 gal (131 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
| Tire Size | 15.5/80-24 |
Transmission
| Lift Capacity At Full Reach | 441 lb (200 kg) |
| Travel Speed | 18.1 mph (29 km/h) |
| Transmission Type | 4-speed powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 15.6 mph (25 km/h) |
| Max Speed - Reverse | 15.6 mph (25 km/h) |
Hydraulic System
| Bucket Crowd | 2.5 sec |
| Retract | 19.2 sec |
| Extend | 19.5 sec |
| Max Operating Pressure | 241 bar |
| Hydraulic Pump | 103 L |
Hydraulic
| Pump Flow Capacity | 29.1 gal/min (110 L/min) |
| Relief Valve Pressure | 3500 psi (24131.7 kPa) |
Hydraulic System
| Raise Time | 15.1 sec |
| Dump Time | 3.2 sec |
| Lower Time | 15.5 sec |
