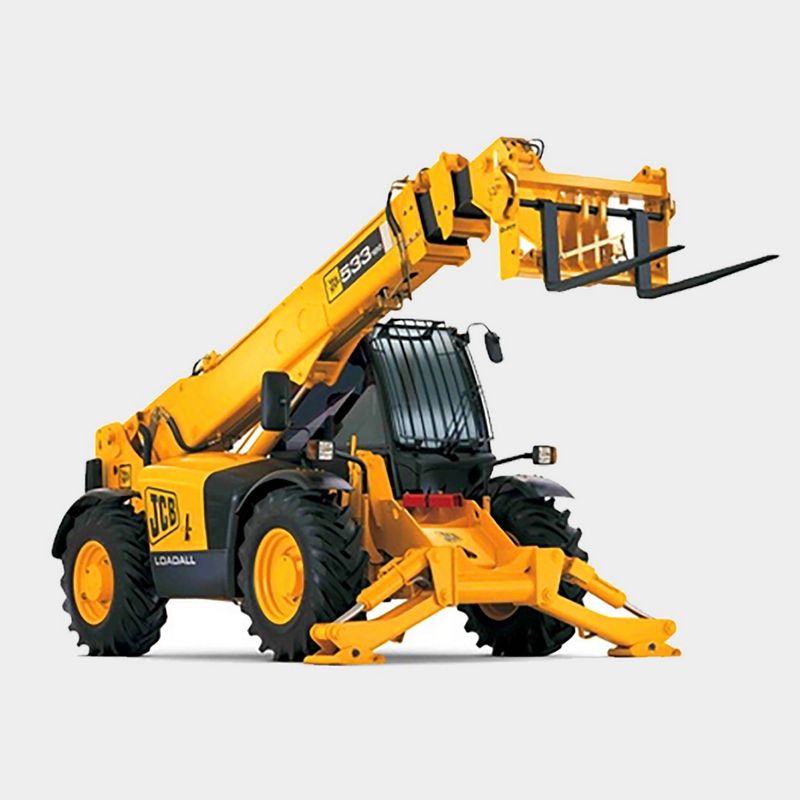

JCB 533-105
Browse All JCB or Telescopic Forklift Models
Contents:
Dimensions
| Length To Fork Face | 17.66 ft in (5380 mm) |
| Ground Clearance | 1.32 ft in (400 mm) |
| Width Over Tires | 7.75 ft in (2360 mm) |
| Overall Height | 8.17 ft in (2490 mm) |
| Wheelbase | 9.03 ft in (2750 mm) |
| Dump Angle | 24 degrees |
| Turning Radius Outside Tires | 12.14 ft in (3700 mm) |
| Weight | 19510.91 lb (8850 kg) |
Lift
| Max Lift Height | 32.32 ft in (9850 mm) |
| Max Forward Reach | 22.68 ft in (6910 mm) |
| Max Lift Capacity | 7275.26 lb (3300 kg) |
| Max Load At Max Height | 7275.26 lb (3300 kg) |
| Max Load At Max Reach | 2314.86 lb (1050 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2257 |
| Engine Model | JCB EcoMAX T4i/IIIB |
| Gross Power | 82.5 hp (61.6 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 227.2 lb ft (308 Nm) |
| Torque Measured @ | 1200 rpm |
| Displacement | 268.6 cu in (4.4 L) |
| Aspiration | turbocharged cooled |
Operational
| Operating Weight | 7275.3 lb (3300 kg) |
| Fuel Capacity | 33.1 gal (125 L) |
| Hydraulic System Fluid Capacity | 34.7 gal (131 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
| Tire Size | 15.5/80-24 |
Transmission
| Lift Capacity To Full Height | 2204.7 lb (1000 kg) |
| Lift Capacity At Full Reach | 826.8 lb (375 kg) |
| Transmission Type | 4-speed powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 19.9 mph (32 km/h) |
| Max Speed - Reverse | 19.9 mph (32 km/h) |
Hydraulic System
| Extend | 13.2 sec |
| Bucket Crowd | 3.4 sec |
| Retract | 13.6 sec |
| Max Operating Pressure | 241 bar |
| Hydraulic Pump | 82 L |
Hydraulic
| Pump Flow Capacity | 21.7 gal/min (82 L/min) |
| Relief Valve Pressure | 3500 psi (24131.7 kPa) |
Hydraulic System
| Raise Time | 8.8 sec |
| Dump Time | 2.4 sec |
| Lower Time | 8.5 sec |
