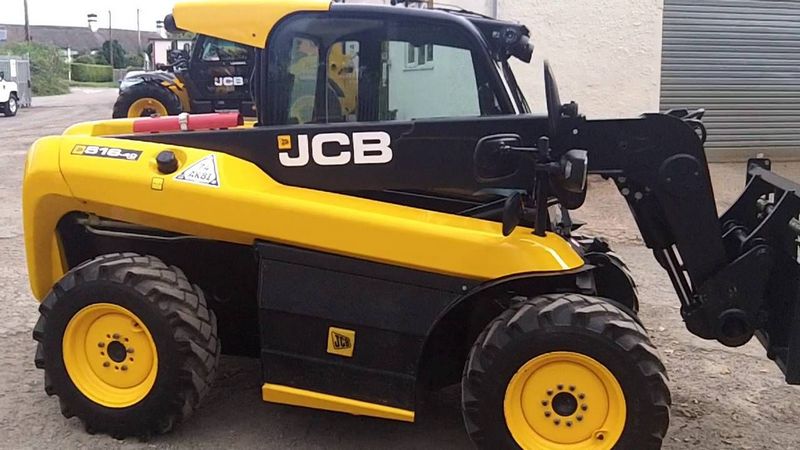

JCB 516-40
Browse All JCB or Telescopic Forklift Models
Contents:
Dimensions
| Ground Clearance | 0.79 ft in (240 mm) |
| Width Over Tires | 5.12 ft in (1560 mm) |
| Overall Height | 5.91 ft in (1800 mm) |
| Wheelbase | 5.75 ft in (1750 mm) |
| Weight | 7542.02 lb (3421 kg) |
| Lift Capacity To Full Height | 3527.4 lb (1600 kg) |
Lift
| Max Lift Height | 13.28 ft in (4045 mm) |
Electrical System
| Alternator | 80 Ah |
| Voltage | 12 V V (deletedelete) |
| Battery | 62 Ah |
Engine
| Emissions Certification | EC Stage IIIA/USA EPA Tier 3 |
| Fuel | Diesel |
| Engine Oil Service Interval Hours | 500 |
| Engine Model | KOHLER KDW2204 CHD |
| Gross Power | 47 hp (35 kw) |
| Cooling System | Liquid |
| Power Measured @ | 2800 rpm |
| Max Torque | 95.9 lb ft (130 Nm) |
| Torque Measured @ | 1600 rpm |
| Displacement | 134.3 cu in (2.2 L) |
| Bore | 3.5 in (88 mm) |
| Stroke | 3.6 in (90.4 mm) |
Capacities
| Fuel Tank | 13.3 gal (50 L) |
| Hydraulic Tank | 15.4 gal (58 L) |
| Engine Oil | 2.2 gal (8 L) |
| Engine Coolant | 5.9 gal (22 L) |
Transmission
| Model | Rexroth AA4VG |
| Lift Capacity At Full Reach | 1653.5 lb (750 kg) |
| Transmission Type | Hydrostatic |
| Max Speed - Forward | 16.2 mph (26 km/h) |
| Max Speed - Reverse | 16.2 mph (26 km/h) |
Hydraulic System
| Extend | 5 sec |
| Retract | 3.7 sec |
| Bucket Crowd | 3.3 sec |
| Auxiliary Hydraulic Flow | 14.8 gal/min (56 L/min) |
| Raise Time | 6.6 sec |
| Dump Time | 2.5 sec |
| Lower Time | 3.9 sec |
