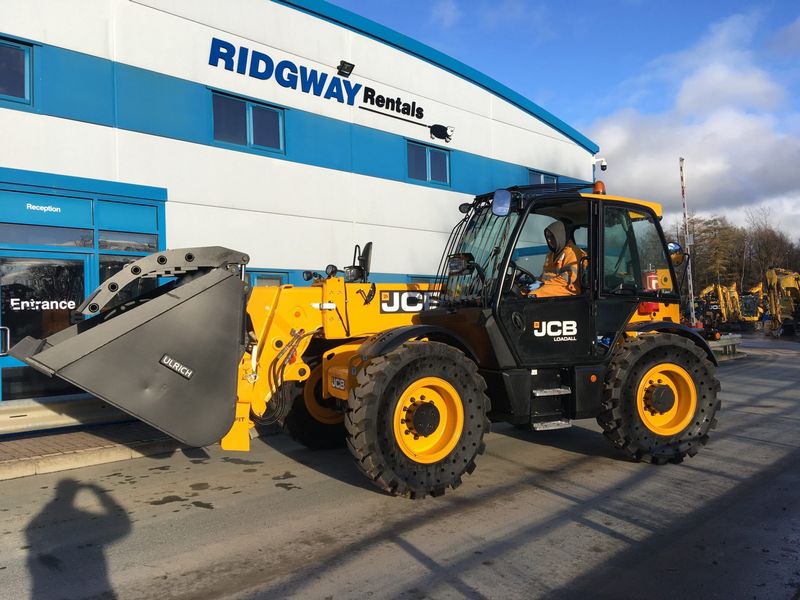

JCB 560-80 WASTEMASTER
Browse All JCB or Telescopic Forklift Models
Contents:
Dimensions
| Ground Clearance | 1.32 ft in (400 mm) |
| Width Over Tires | 8.34 ft in (2540 mm) |
| Overall Height | 8.5 ft in (2590 mm) |
| Wheelbase | 9.03 ft in (2750 mm) |
| Dump Angle | 33 degrees |
| Lift Capacity To Full Height | 6613.87 lb (3000 kg) |
| Weight | 24339.04 lb (11040 kg) |
Lift
| Max Lift Height | 25.92 ft in (7900 mm) |
| Max Forward Reach | 14.67 ft in (4470 mm) |
| Max Lift Capacity | 13227.74 lb (6000 kg) |
Electrical System
| Battery Capacity | 220 Ah |
| Voltage | 12 V V (deletedelete) |
Engine
| Engine Oil Service Interval Hours | 500 |
| Emissions Level | Stage IV / Tier 4 Final |
| Number Of Cylinders | 4 |
| Engine Make | JCB |
| Engine Model | Agri |
| Gross Power | 124.8 hp (93 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 405.7 lb ft (550 Nm) |
| Torque Measured @ | 1500 rpm |
| Displacement | 268.6 cu in (4.4 L) |
| Bore | 4.1 in (103 mm) |
| Stroke | 5.2 in (132 mm) |
| Aspiration | TCA |
Capacities
| Fuel Tank | 38.6 gal (146 L) |
| Hydraulic Tank | 29.9 gal (113 L) |
| Diesel Exhaust Fluid (Def) Tank | 5.5 gal (20.8 L) |
| Engine Oil | 3.7 gal (14 L) |
| Engine Coolant | 6.1 gal (23 L) |
Transmission
| Lift Capacity At Full Reach | 3858.1 lb (1750 kg) |
Hydraulic System
| Bucket Crowd | 3 sec |
| Extend | 8.3 sec |
| Retract | 5.9 sec |
| Max Operating Pressure | 260 bar |
Hydraulic
| Pump Type | Variable |
Hydraulic System
| Raise Time | 7.4 sec |
| Dump Time | 2.8 sec |
| Lower Time | 8.3 sec |
