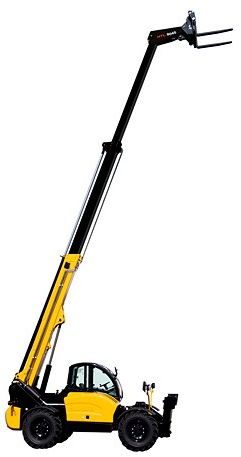

Haulotte HTL9045
Browse All Haulotte or Telescopic Forklift Models
Contents:
Dimensions
| Ground Clearance | 1.64 ft in (497.84 mm) |
| Wheelbase | 9.6 ft in (2926.08 mm) |
| Height | 103.2 in (2621.29 mm) |
| Max Fork Height | 44.7 ft in (13624.56 mm) |
| Approach Angle | 29 degrees |
| Cab Width | 3.2 ft in (0.98 m) |
| Overall Track Width | 6.4 ft in (1950.72 mm) |
| Reach At Maximum Fork Height | 4.12 ft in (1252.73 mm) |
| Turning Radius Outside Tires | 14.9 ft in (4541.53 mm) |
| Width | 8 ft in (2438.4 mm) |
| Overall Length | 21.2 ft in (6461.76 mm) |
Lift
| Max Forward Reach | 32.21 ft in (9814.56 mm) |
| Max Lift Capacity | 8820 lb (4000.69 kg) |
| Max Load At Max Height | 6615 lb (3000.52 kg) |
| Max Load At Max Reach | 2205 lb (1000.18 kg) |
Engine
| Emission Tier Level | TIER IV FINAL |
| Engine Model | KOHLER TIER IV |
| Gross Power | 74.3 hp (55.4 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 276.6 lb ft (375 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 207 cu in (3.4 L) |
Operational
| Operating Weight | 22976 lb (10421.8 kg) |
| Fuel Capacity | 34.3 gal (129.9 L) |
| Engine Oil Capacity | 3.9 gal (14.8 L) |
| Tire Size | 400/80-24 |
Transmission
| Transmission Type | Hydrostatic |
