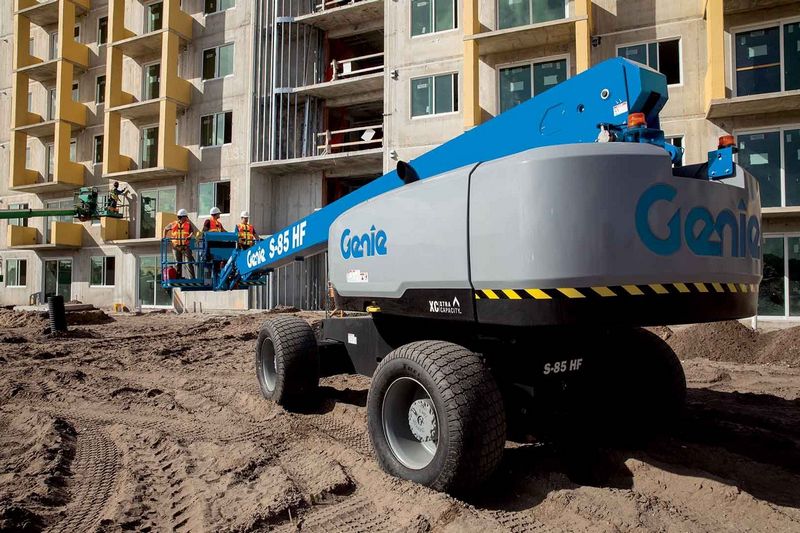

Genie S-85 HF
Contents:
Dimensions
| Overall Length | 487.01 in (12370 mm) |
| Overall Width | 8.6 ft in (2621.29 mm) |
| Wheelbase | 9.4 ft in (2865.12 mm) |
| Ground Clearance | 15.8 in (401.32 mm) |
| Gradeability | 45 % |
| Overall Height | 9.2 ft in (2804.16 mm) |
| Weight | 38001.08 lb (17237 kg) |
Platform
| Platform Rotation | 160 degrees |
| Platform Inner Length | 35.83 in (910 mm) |
| Platform Inner Width | 96.07 in (2440 mm) |
Engine
| Power | 74 hp (55 kW) Deutz turbo diesel, Tier 4i, TD2011L04i |
| Engine Model | S-85 HF |
Capacities
| Fuel Tank - Gas | 30 gal (113.6 L) |
| Max . Lift Capacity - Restricted | 1000 lb (453.6 kg) |
| Max . Lift Capacity - Understricted | 600 lb (272.2 kg) |
| Auxiliary Power Unit | 12V DC |
| Fuel Tank - Diesel | 35 gal (132.5 L) |
| Hydraulic Tank | 40 gal (151.5 L) |
Operational
| Drive Speed - Raised | 0.5 mph (0.9 km/h) |
| Controls | 12V DC proportional |
| Turning Radius - Axle Outside | 21.5 ft in (6.6 m) |
| Turning Radius - Axle Inside | 12.1 ft in (3.7 m) |
| Drive Speed - Stowed | 3 mph (4.9 km/h) |
| Below Ground Reach | 8.7 ft in (2.7 m) |
| Working Height - Maximum | 91.1 ft in (27.8 m) |
| Horizontal Reach - Maximum | 72.6 ft in (22.1 m) |
| Platform Height - Maximum | 85.1 ft in (26 m) |
| Tires | Air filled 41/18LL x 22.5, 20 ply |
