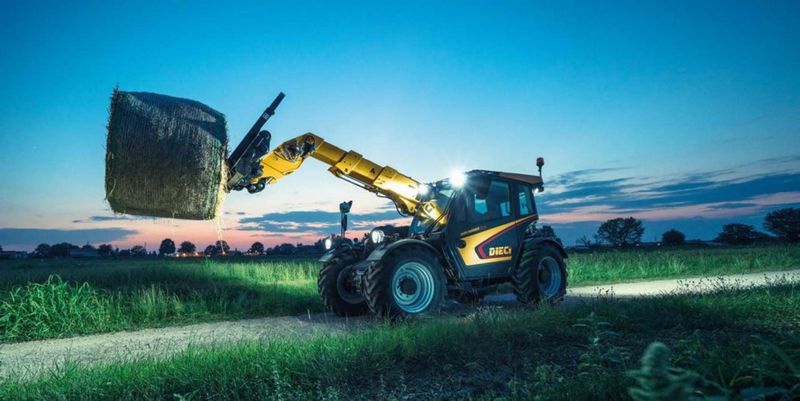

DIECI Agri Farmer 30.9
Browse All DIECI or Telescopic Forklift Models
Contents:
Lift
| Max Lift Height | 28.55 ft in (8700 mm) |
| Max Forward Reach | 18.71 ft in (5700 mm) |
| Max Lift Capacity | 6613.87 lb (3000 kg) |
| Max Load At Max Height | 2645.55 lb (1200 kg) |
| Max Load At Max Reach | 771.62 lb (350 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2388 |
| Engine Model | F4GE0454A-TC |
| Gross Power | 99.3 hp (74 kw) |
| Power Measured @ | 2300 rpm |
| Displacement | 273.7 cu in (4.5 L) |
Operational
| Operating Weight | 13558.5 lb (6150 kg) |
| Fuel Capacity | 15.9 gal (60 L) |
| Hydraulic System Fluid Capacity | 34.4 gal (130 L) |
| Tire Size | 16/70x20 |
Transmission
| Transmission Type | Hydrostatic with variable capacity pump |
| Max Speed - Forward | 21.8 mph (35 km/h) |
Hydraulic
| Pump Type | Gear pump |
| Pump Flow Capacity | 23.3 gal/min (88 L/min) |
| Relief Valve Pressure | 3335.9 psi (23000 kPa) |
