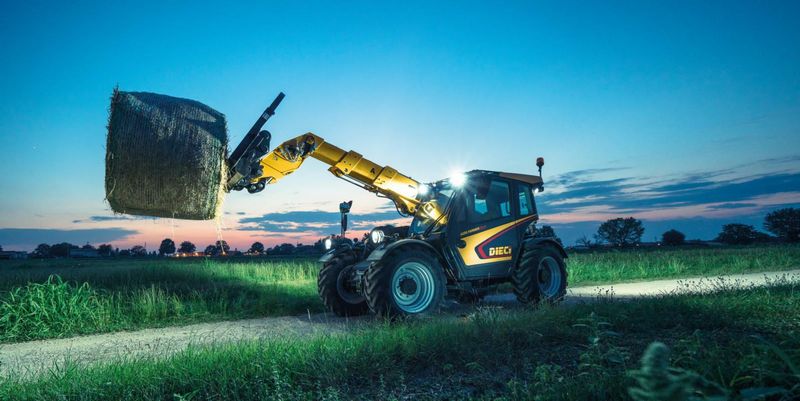

DIECI Agri Farmer 28.7
Browse All DIECI or Telescopic Forklift Models
Contents:
Lift
| Max Lift Height | 20.84 ft in (6350 mm) |
| Max Forward Reach | 11.98 ft in (3650 mm) |
| Max Lift Capacity | 6172.95 lb (2800 kg) |
| Max Load At Max Height | 4409.25 lb (2000 kg) |
| Max Load At Max Reach | 1543.24 lb (700 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2388 |
| Engine Model | F4GE0454A-TC |
| Gross Power | 99.3 hp (74 kw) |
| Power Measured @ | 2300 rpm |
| Displacement | 273.7 cu in (4.5 L) |
Operational
| Operating Weight | 13227.8 lb (6000 kg) |
| Fuel Capacity | 15.9 gal (60 L) |
| Hydraulic System Fluid Capacity | 34.4 gal (130 L) |
| Tire Size | 12.5x18 |
Transmission
| Transmission Type | Hydrostatic with variable capacity pump |
| Max Speed - Forward | 21.8 mph (35 km/h) |
Hydraulic
| Pump Type | Gear pump |
| Pump Flow Capacity | 23.3 gal/min (88 L/min) |
| Relief Valve Pressure | 3335.9 psi (23000 kPa) |
