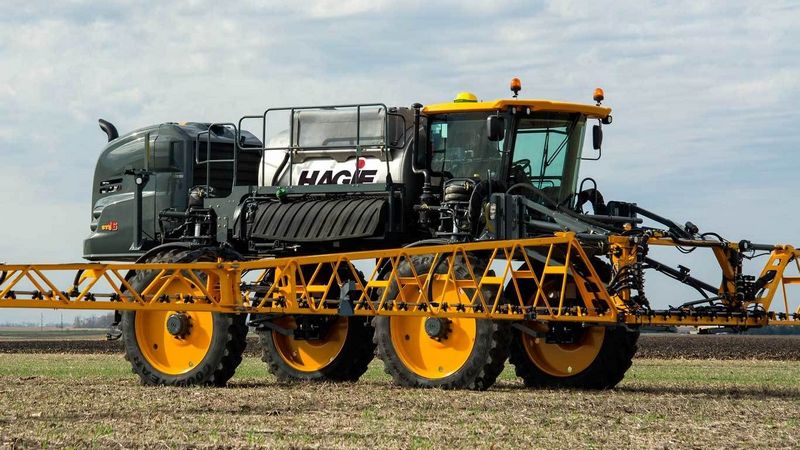

John Deere Hagie™ STS16
Browse All John Deere or Sprayer Models
Contents:
Boom
| Automatic Boom Height | NORAC® |
| Boom Length Options | 18/24/27, 18/30, or 27/37 m 60/80/90, 60/100, or 90/120 ft |
| Boom Sections | 7 or 9 sections on booms - 27/36 m 90/120 ft |
| Breakaway Width | For 27-m (90-ft) booms - 3 m 10 ft For 30-m (100-ft) booms - 3.8 m 12.5 ft For 36-m (120-ft) booms - 4.6 m 15 ft |
| Ground Height Adjustment | For 18/24/27-m and 18/30-m (60/80/90-ft and 60/100-ft) booms - 56 to 272 cm 22 to 107 in. For 27/37-m (90/120-ft) booms - 43.2 to 297.2 cm 17 to 117 in. |
| Plumbing Material | Stainless steel |
Engine
| Number Of Cylinders | 6 |
| Fuel Tank Capacity | 174.9 gal (662 L) |
| Displacement | 549.3 cu in (9 L) |
| Emission Level | Final Tier 4 (FT4) |
| Peak Rated Power | 374.2 hp (279 kw) |
| Alternator | 240 amp amps |
| Diesel Exhaust Fluid (Def) Tank Capacity | 8.1 gal (30.3 L) |
Drive Train
| Drive Train Type | Cross-coupled dual hydrostatic |
| Drive | Full-time four-wheel drive (4WD) |
| Shifting | Infinitely variable |
| Hydraulic Reservoir Capacity | 50.2 gal (190 L) |
| Spray Speed Range | 0.8 to 32 km/h 0.5 to 20 mph |
| Transport Speed, Maximum | 34.8 mph (56 km/h) |
Solution System
| Tank Material | Stainless steel |
| Rinse Tank Capacity | 100 gal (378.5 L) |
| Rate Control Make | John Deere Raven / Ag Leader optional |
| Automatic Section Control | Optional |
| Display | John Deere GreenStar 2630 |
| Solution System Control | John Deere |
| Fill Location | Front standard Side/rear optional |
| Chemical Injection Method | Raven Sidekick - optional |
| Chemical Eductor | Optional |
| Chemical Eductor Capacity (Size) | 8 gal (30 L) |
| Flow Meter Size | 2.3 in (5.8 cm) |
| Pressure Strainer | 50 mesh |
| Boom Strainer | Standard 80 mesh |
| Capacity | 1599.9 gal (6056 L) |
| Quick Fill Size | 3 in (7.6 cm) |
Chassis
| Suspension | Independent air-ride |
| Wheel Base | 166.2 in (422 cm) |
| Dry Compatible | No |
| Crop Clearance With Standard Tires | 183 cm 72 in. |
| Front Tires | 380/85 R46, 320/90 R46, 320/105 R54, or 380/90 R54 |
| Rear Tires | 380/85 R46, 320/90 R46, 320/105 R54, or 380/90 R54 |
| Flotation Tires | LSW 680/55R42 |
| Hydraulic Tread Adjust | Optional |
| Wheel Tread Spacing | 305 to 386 cm 120 to 152 in. |
| Turning Radius | 23 ft in (7 m) |
| Parking Brakes | Integrated in final drives |
| Ladder Raise/Lower | Hydraulic |
| Total Weight With 120-Ft Boom | 29147.4 lb (13221 kg) |
| Primary Brakes | Drive system dynamic braking |
| Total Weight With 90-Ft Boom | 29407.5 lb (13339 kg) |
