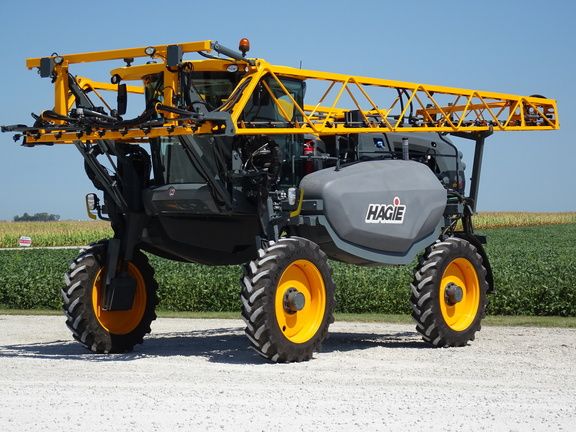

John Deere Hagie™ DTS10
Browse All John Deere or Sprayer Models
Contents:
Boom
| Automatic Boom Height | NORAC |
| Boom Length Options | 18/24 and 27 m 60/80 and 90 ft |
| Boom Sections | Five sections for booms widths - 18/24 and 27 m 60/80 and 90 ft |
| Breakaway Width | For 27-m (90-ft) booms - 3 m 10 ft |
| Ground Height Adjustment | 58 to 257 cm 23 to 101 in. |
| Plumbing Material | Stainless steel |
Engine
| Number Of Cylinders | 6 |
| Fuel Tank Capacity | Two tanks - 189 L 50 gal. |
| Displacement | 408.9 cu in (6.7 L) |
| Emission Level | Final Tier 4 (FT4) |
| Peak Rated Power | 224 hp (167 kw) |
| Alternator | 200 amp amps |
| Diesel Exhaust Fluid (Def) Tank Capacity | 10.1 gal (37.9 L) |
Drive Train
| Drive Train Type | Hydrostatic |
| Drive | Full-time four-wheel drive (4WD) |
| Shifting | Dual range speed control with incremental speed adjustment within each range |
| Hydraulic Reservoir Capacity | 25.1 gal (95 L) |
| Spray Speed Range | 0.8 to 32 km/h 0.5 to 20 mph |
| Transport Speed, Maximum | 29.9 mph (48 km/h) |
Solution System
| Tank Material | Poly |
| Rinse Tank Capacity | 55 gal (208 L) |
| Rate Control Make | John Deere Raven / Ag Leader options |
| Automatic Section Control | Optional |
| Solution System Control | John Deere |
| Fill Location | Rear |
| Chemical Injection Method | Raven Sidekick optional |
| Chemical Eductor | Optional |
| Chemical Eductor Capacity (Size) | 8.1 gal (30.3 L) |
| Flow Meter Size | 2.3 in (5.8 cm) |
| Pressure Strainer | 50 mesh |
| Boom Strainer | Optional 80 mesh |
| Capacity | Per tank - 1890 L 500 gal. |
| Quick Fill Size | Quick-fill connection - 5.1 cm 2 in. |
Chassis
| Suspension | Independent air-ride |
| Wheel Base | 137.8 in (350 cm) |
| Dry Compatible | No |
| Crop Clearance With Standard Tires | 182 cm 73 in. |
| Front Tires | 380/80R38 or 320/80R42 |
| Rear Tires | 380/80R38 or 320/80R42 |
| Flotation Tires | 540/65R30 |
| Hydraulic Tread Adjust | Optional |
| Wheel Tread Spacing | 305 to 365 cm 120 to 144 in. |
| Turning Radius | 19.4 ft in (5.9 m) |
| Parking Brakes | Integrated in final drives |
| Ladder Raise/Lower | Hydraulic |
| Total Weight With 80-Ft Boom | 20198.8 lb (9162 kg) |
| Primary Brakes | Drive system dynamic braking |
| Total Weight With 90-Ft Boom | 20518.5 lb (9307 kg) |
