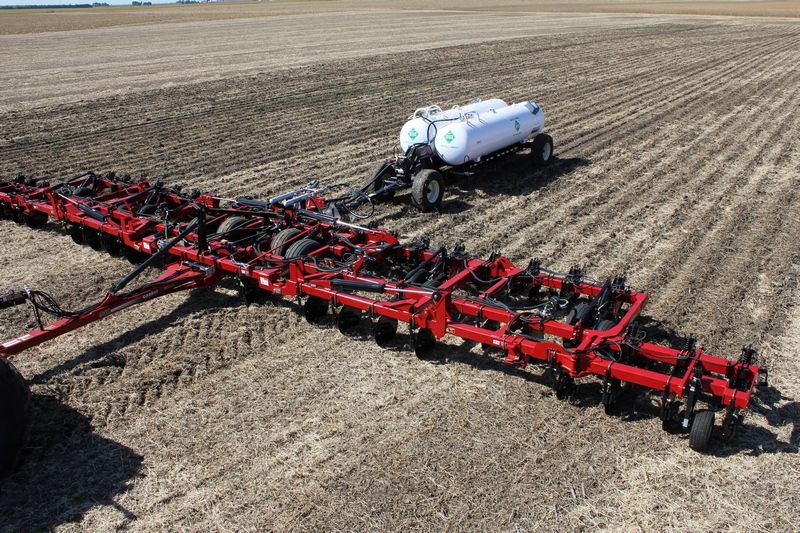

Case IH NUTRI-PLACER 940 HSLD, 65 FT
Contents:
Dimensions
| Coulter Diameter | 22.6 in (574 mm) |
Configuration
| Transport Folding Method | 5-section triple fold |
| Row Spacings | 30 in (762 mm) |
| Fertilizer Material | Anhydrous |
| Working Width | 65 ft in (19.8 m) |
| Number Of Rows | 26 rows |
Drawbar
| Description | Drawbar Category 5 |
Frame
| Toolbar Rigid Or Flexible | 5 Section flex |
Engine
| Engine Make | Case IH |
| Engine Model | Nutri-Placer 940 HSLD, 65 ft. |
| Power | 650.4 hp (485 kw) |
Shanks
| Sealing Discs, Closing Discs, Berm Builder | 13 (330) in (mm) SharkTooth blade with 11 (279) in (mm) cast closer wheel and press wheel |
| Shank Working Depth | 6 in (152.4 mm) |
