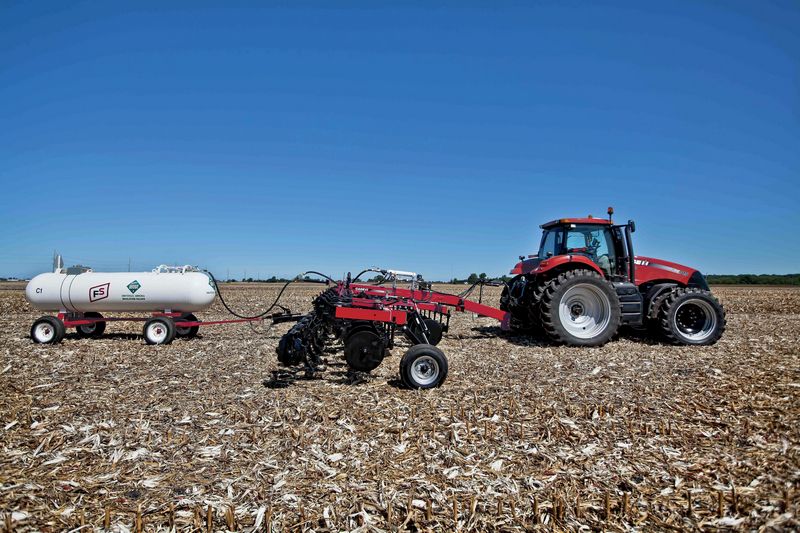

Case IH NUTRI-PLACER 930 HSLD, 42.5 FT
Contents:
Dimensions
| Transport Width | 18.38 ft in (5600 mm) |
| Transport Height | 13.46 ft in (4100 mm) |
| Coulter Diameter | 22.6 in (574 mm) |
Configuration
| Transport Folding Method | Double fold |
| Row Spacings | 30 in (762 mm) |
| Fertilizer Material | Anhydrous |
| Working Width | 42.5 ft in (13 m) |
| Number Of Rows | 17 rows |
Drawbar
| Description | Drawbar Category 4 clevis standard, 5 optional |
Frame
| Toolbar Rigid Or Flexible | 3 Section flex, 16, -7 degrees |
Engine
| Engine Make | Case IH |
| Engine Model | Nutri-Placer 930 HSLD, 42.5 ft. |
| Power | 425.2 hp (317 kw) |
Shanks
| Sealing Discs, Closing Discs, Berm Builder | 13 (330) in (mm) SharkTooth blade with 11 (279) in (mm) cast closer wheel and press wheel |
| Shank Working Depth | 6 in (152.4 mm) |
Tires
| Main Frame Tire Size | Tandem 320/70 R15 |
| Wing Frame Tire Size | Tandem 280/70 R15 |
