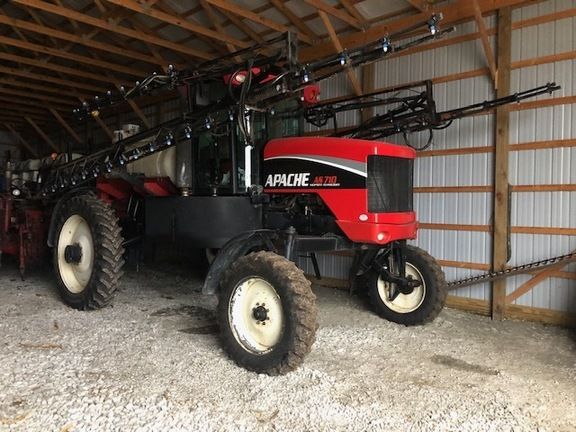

Apache AS710
Contents:
| Min Boom Width | 60 ft in (18.29 m) |
| Max Boom Width | 100 ft in (30.48 m) |
| Max Adjustable Height | 74 in (187.96 cm) |
| Min Adjustable Height | 14 in (35.56 cm) |
| Overall Length | 27 in (8229.6 mm) |
| Wheelbase | 13.5 ft in (4114.8 mm) |
| Transport Width | 12 ft in (3657.6 mm) |
| Ground Clearance | 2.58 ft in (786.39 mm) |
| Tire Size | Front 12.4 x 28 |
| Turning Radius | 16.75 ft in (5.11 m) |
| Engine Make | 2240 |
| Engine Model | Tier II |
| Gross Power | 155 hp (115.6 kw) |
| Gross Torque | 409 lb ft (554.6 Nm) |
| Fuel Capacity | 100 gal (378.6 L) |
| Solution Tank Capacity | 750 gal (2839.1 L) |
| Dry Weight - Min | 15900 lb (7212.2 kg) |
| Transmission Type | ITL/JCB Powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed | 28 mph (45.1 km/h) |
