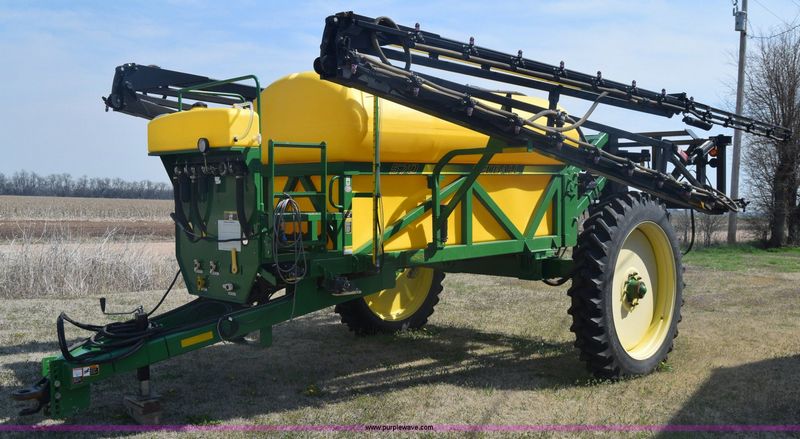

Redball 570
Contents:
Boom
| Min Boom Width | 60 ft in (18.29 m) |
| Max Boom Width | 90 ft in (27.44 m) |
| Nozzle Spacing | 20 in (50.8 cm) |
| Max Adjustable Height | 66 in (167.64 cm) |
| Min Adjustable Height | 25 in (63.5 cm) |
Dimensions
| Transport Width | 12 ft in (3657.6 mm) |
| Transport Height | 9.5 ft in (2895.6 mm) |
| Tire Size | 320(12.4)/90R46 |
Operational
| Solution Tank Capacity | 850 gal (3217.7 L) |
| Rinse Tank Capacity | 36 gal (136.3 L) |
| Foam Marker Tank Capacity | 25 gal (94.7 L) |
| Hand/Eye Wash Tank Capacity | 15 gal (56.8 L) |
| Dry Weight - Min | 8000 lb (3628.8 kg) |
