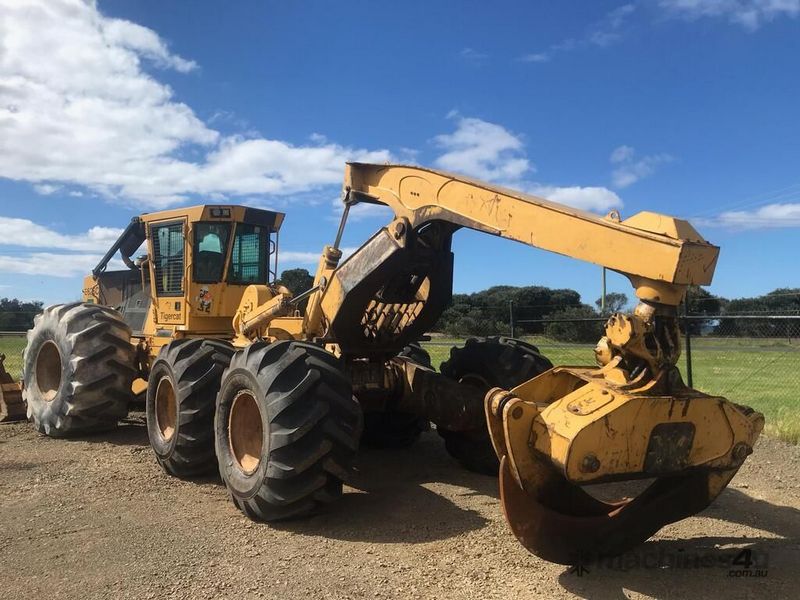

Tigercat E625C
Contents:
Dimensions
| Overall Length | 30.01 ft in (9145 mm) |
| Overall Width | 10.93 ft in (3330 mm) |
| Height To Top Of Cab | 10.34 ft in (3150 mm) |
| Ground Clearance | 2.09 ft in (635 mm) |
| Wheelbase | 16.08 ft in (4900 mm) |
| Tong Opening At Tips | 12.5 in (3810 mm) |
| Grapple Capacity - Tongs Tip To Tip | 21 ft2 (1.96 m2) |
| Blade Width | 7.5 ft in (2285 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | QSB6.7 |
| Gross Power | 220 hp (164.1 kw) |
| Power Measured @ | 2200 rpm |
Operational
| Operating Weight | 46495.5 lb (21090 kg) |
| Fuel Capacity | 92.5 gal (350 L) |
| Hydraulic System Fluid Capacity | 27.8 gal (105 L) |
| Operational Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Axle Oscillation | 15 degrees |
| Tire Size | front 30.5 x 32, rear 28L x 26 |
Transmission
| Transmission Type | single-speed mechanical, variable speed hydrostatic |
| Number Of Forward Gears | 1 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 8.4 mph (13.6 km/h) |
| Max Speed - Reverse | 8.4 mph (13.6 km/h) |
Hydraulic
| Pump Type | variable displacement axial piston |
