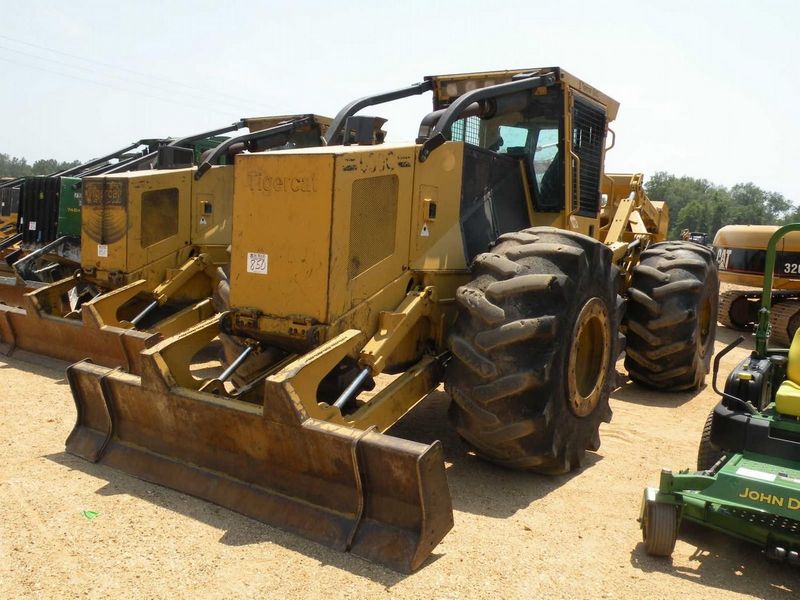

Tigercat 630C
Contents:
Dimensions
| Overall Length | 23.43 ft in (7140 mm) |
| Overall Width | 10.59 ft in (3225 mm) |
| Height To Top Of Cab | 10.34 ft in (3150 mm) |
| Ground Clearance | 2.09 ft in (635 mm) |
| Wheelbase | 13.26 ft in (4040 mm) |
| Tong Opening At Tips | 11.83 ft in (3605 mm) |
| Grapple Capacity - Tongs Tip To Tip | 17 ft2 (1.58 m2) |
| Blade Width | 7.09 ft in (2160 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | QSC8.3 |
| Gross Power | 250 hp (186.5 kw) |
Operational
| Operating Weight | 37500.7 lb (17010 kg) |
| Fuel Capacity | 80.6 gal (305 L) |
| Hydraulic System Fluid Capacity | 27.8 gal (105 L) |
| Operational Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Axle Oscillation | 15 degrees |
| Tire Size | 30.5L x 32 16PR |
Transmission
| Transmission Type | single-speed mechanical, variable speed hydrostatic |
| Max Speed - Forward | 11 mph (17.8 km/h) |
| Max Speed - Reverse | 11 mph (17.8 km/h) |
Hydraulic
| Pump Type | variable displacement axial piston |
