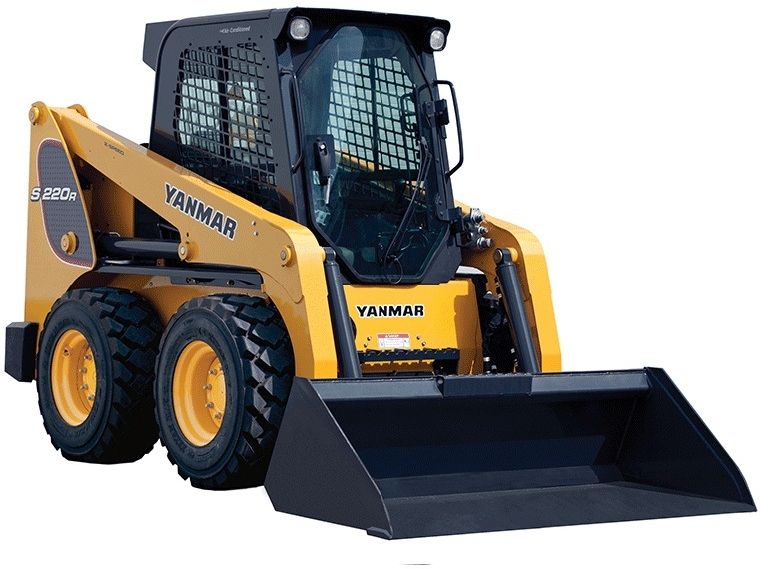

Yanmar S220R-1
Browse All Yanmar or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 11.38 ft in (3467 mm) |
| Ground Clearance | 8 in (203 mm) |
| Height To Top Of Cab | 13.42 ft in (4089 mm) |
| Wheelbase | 3.59 ft in (1092 mm) |
| Length W/O Bucket | 8.75 ft in (2667 mm) |
| Reach At Max Lift And Dump | 27.01 in (686 mm) |
| Hinge Pin Height - Fully Raised | 123 in (3124 mm) |
| Dump Angle | 40 degrees |
| Front Departure Angle | 25 degrees |
| Overall Height, Rops Cab | 80.99 in (2057 mm) |
| Overall Width | 5.46 ft in (1664 mm) |
| Rollback - Ground Level | 28 degrees |
| Ground Height | 40 in (1016 mm) |
| Dump Height | 7.84 ft in (2388 mm) |
Engine
| Engine Make | Yanmar |
| Engine Model | 4TNV98CT-NMS |
| Net Power | 70.7 hp (52.7 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 202.6 cu in (3.4 L) |
Capacities
| Rated Operating Capacity | 2200.3 lb (998 kg) |
Operational
| Operational Weight | 7980.8 lb (3620 kg) |
| Fuel Capacity | 18 gal (68.1 L) |
| Max Speed | 11.4 mph (18.3 km/h) |
| Tire Size | 12.00 x 16.5 HD |
Electrical
| Alternator | 95 amps |
| Starter Size | 12-volt (3.0 kW) |
| Battery | 12-volt (950 CCA) |
Weights
| With Optional Counterweight | 2370 lb (1075 kg) |
Loader
| Tipping Angle | 4398.3 degrees |
| Bucket Width | 70 in (1778 mm) |
Hydraulic
| Hydraulic Reservoir | 12 gal (45.5 L) |
| Auxiliary Hydraulic Flow | 23.6 gal/min (89 L/min) |
| Relief Valve Pressure | 3300 psi (22752.7 kPa) |
