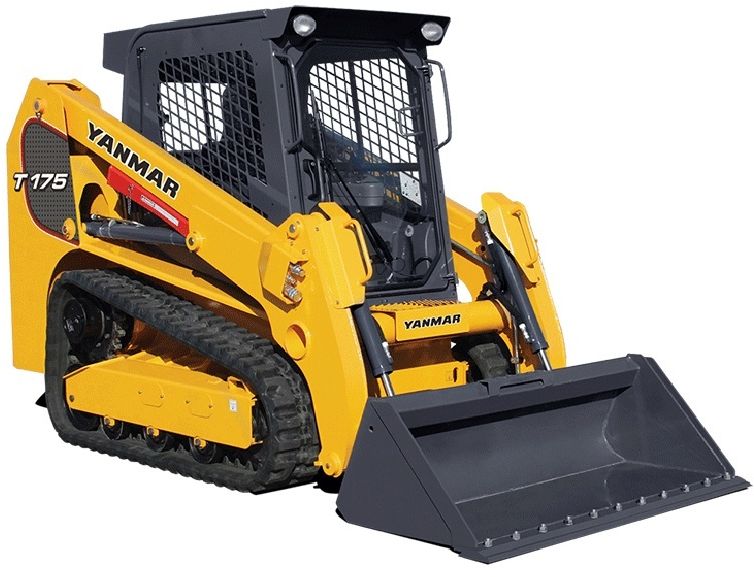

Yanmar T175-1
Browse All Yanmar or Multi Terrain Loader Models
Contents:
Dimensions
| Ground Clearance | 13.51 in (343 mm) |
| Track Gauge | 4.31 ft in (1313 mm) |
| Reach At Max Lift And Dump | 2.88 ft in (876 mm) |
| Front Departure Angle | 30.4 degrees |
| Grouser Height | 0.09 ft in (25 mm) |
| Hinge Pin Height - Fully Raised | 127.52 in (3239 mm) |
| Length With Bucket | 12.01 ft in (3658 mm) |
| Length With Out Bucket | 9.24 ft in (2814 mm) |
| Max. Rollback Angle | 102.5 degrees |
| Operating Height - Fully Raised With Spillgaurd | 168 in (4267 mm) |
| Overall Height, Rops Cab | 82.8 in (2103 mm) |
| Overall Width Without Bucket | 64.41 in (1636 mm) |
| Track Width | 1.05 ft in (0.32 m) |
| Dump Angle | 40.21 degrees |
| Dump Height | 8.17 ft in (2489 mm) |
| Crawler Length | 4.57 ft in (1392 mm) |
| Track Shoe Width | 1.05 ft in (320 mm) |
Undercarriage
| Ground Pressure | 6.2 psi (42.75 kPa) |
Engine
| Fuel Tank | 2.8 gal (10.4 L) |
| Number Of Cylinders | 4 |
| Engine Make | Yanmar |
| Engine Model | 4TNV98C-NMSL |
| Engine Type | 4-Stroke Naturally Aspirated |
| Net Power | 68.4 hp (51 kw) |
| Peak Torque | 179.1 lb ft (242.7 Nm) |
| Displacement | 203 cu in (3.4 L) |
| Alternator | 95 amps |
Capacities
| Rated Operating Capacity | 1750.5 lb (794 kg) |
Operational
| Operating Weight | 8604.7 lb (3903 kg) |
| Cooling System Fluid Capacity | 3.6 gal (13.3 L) |
| Fuel Capacity | 24.4 gal (92 L) |
| Hydraulic System Fluid Capacity | 11 gal (41.6 L) |
| Drawbar Pull | 11840 lb (5370.6 kg) |
| Max Speed - Low Range | 5.1 mph (8.2 km/h) |
| Max Speed - High Range | 7.6 mph (12.1 km/h) |
Loader
| Breakout Force | 5189.7 lb (2354 kg) |
| Tipping Angle | 5000.1 degrees |
| Bucket Width | 66 in (1674 mm) |
Hydraulic
| Auxiliary Hydraulic Flow | 18.5 gal/min (70 L/min) |
