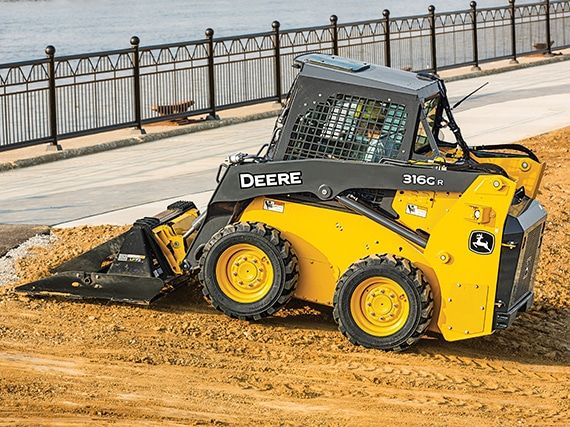

John Deere 316R _GR_Skid Steer _JD
Browse All John Deere or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 10.63 ft in (3240 mm) |
| Ground Clearance | 7.09 in (180 mm) |
| Wheelbase | 3.45 ft in (1050 mm) |
| Length - No Bucket | 103.55 in (2630 mm) |
| Overall Height | 6.44 ft in (1960 mm) |
| Rear Departure Angle | 22.3 |
| Reach - Max Dump Height | 15.75 in (400 mm) |
| Rollback - Ground Level | 30 - |
| Dump Angle | 45 |
| Width - No Bucket | 63 in (1600 mm) |
| Dump Height - Maximum | 88.59 in (2250 mm) |
| Height To Hinge Pin | 114.97 in (2920 mm) |
Driveline
| Engine Model | 4TNV86CHT |
| Displacement | 128.2 cu in (2.1 L) |
| Engine Manufacturer | Yanmar |
| Emission Rating | Tier 4 |
| Rated Engine Speed | 2600 rpm |
| Sae Net Power | 61 hp (45.5 kw) |
| Sae Gross Power | 65 hp (48.5 kw) |
| Max. Gross Torque | 207 (153) |
| Drive Chain Rating [Ansi] | 80 - HD |
| Tire Size - Standard | 10 x 16.5 |
| Aspiration | Turbo |
Capacities
| Fuel Tank - Diesel | 18.8 gal (71 L) |
Description
| Lift Geometry | Radial |
Performance
| Rated Operating Capacity - Optional Counterweight | 1902.6 lb (863 kg) |
| Tipping Capacity (Sae) | 3503.2 lb (1589 kg) |
| Axle Torque - Maximum | 6459 (4764) |
| Speed - Maximum | 6.9 mph (11 km/h) |
| Breakout - Lift | 4743.5 lb (21.1 kN) |
| Breakout - Bucket | 3979.2 lb (17.7 kN) |
| Hydraulic Power | 31 hp (23.2 kw) |
| Pump Output | 15.6 gal/min (59 L/min) |
| System Pressure | 3450 psi (23786.9 kPa) |
| Speed - Maximum Option | 10.2 mph (16.3 km/h) |
| Rated Operating Capacity | 1752.7 lb (795 kg) |
Weights
| Operating Weight | 6380.2 lb (2894 kg) |
