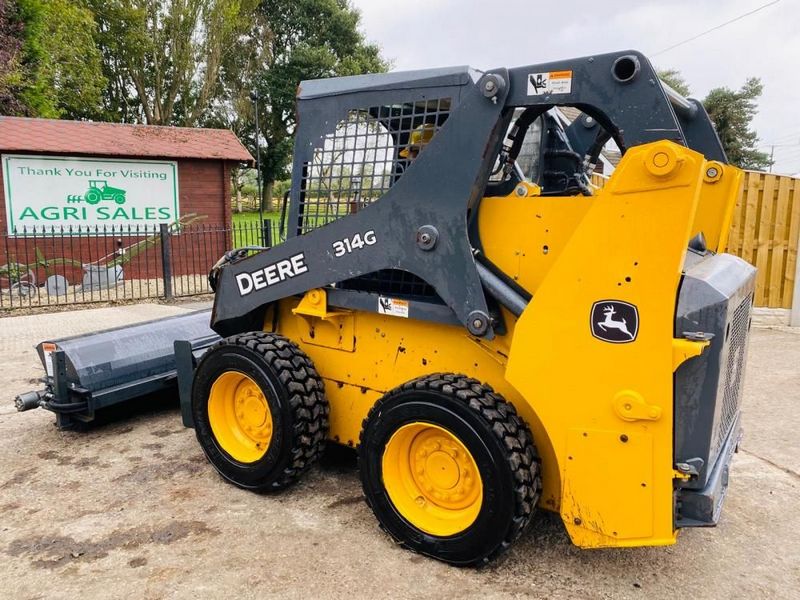

John Deere 314G _ Skid Steer _JD
Browse All John Deere or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 10.63 ft in (3240 mm) |
| Ground Clearance | 7.09 in (180 mm) |
| Wheelbase | 3.45 ft in (1050 mm) |
| Length - No Bucket | 103.55 in (2630 mm) |
| Length - With Bucket | 127.56 in (3240 mm) |
| Overall Height | 6.44 ft in (1960 mm) |
| Rear Departure Angle | 22.3 |
| Reach - Max Dump Height | 33.86 in (860 mm) |
| Rollback - Ground Level | 30 - |
| Dump Angle | 42 |
| Width - No Bucket | 63 in (1600 mm) |
| Dump Height - Maximum | 94.49 in (2400 mm) |
| Height To Hinge Pin | 120.08 in (3050 mm) |
Driveline
| Engine Model | 4TNV86CT |
| Displacement | 128.2 cu in (2.1 L) |
| Engine Manufacturer | Yanmar |
| Emission Rating | Tier 4 |
| Rated Engine Speed | 2600 rpm |
| Sae Net Power | 48 hp (35.8 kw) |
| Sae Gross Power | 51 hp (38.1 kw) |
| Max. Gross Torque | 168 (124) |
| Drive Chain Rating [Ansi] | 80 - HD |
| Tire Size - Standard | 10 x 16.5 |
| Aspiration | Turbo |
Capacities
| Fuel Tank - Diesel | 18.8 gal (71 L) |
Performance
| Rated Operating Capacity - Optional Counterweight | 1902.6 lb (863 kg) |
| Tipping Capacity (Sae) | 3523 lb (1598 kg) |
| Axle Torque - Maximum | 4664 (3440) |
| Speed - Maximum | 6.8 mph (10.8 km/h) |
| Breakout - Lift | 4496.2 lb (20 kN) |
| Breakout - Bucket | 4990.8 lb (22.2 kN) |
| Hydraulic Power | 29.2 hp (21.8 kw) |
| Pump Output | 15.6 gal/min (59 L/min) |
| System Pressure | 3250 psi (22408 kPa) |
| Rated Operating Capacity | 1761.5 lb (799 kg) |
Weights
| Operating Weight | 6320.7 lb (2867 kg) |
