Doosan 470 Plus
Browse All Doosan or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 10.66 ft in (3248 mm) |
| Width Over Tires | 5.46 ft in (1662 mm) |
| Ground Clearance | 8.59 in (218 mm) |
| Height To Top Of Cab | 6.68 ft in (2035 mm) |
| Wheelbase | 3.49 ft in (1061 mm) |
| Length W/O Bucket | 8.39 ft in (2557 mm) |
| Clearance At Max Lift And Dump | 7.96 ft in (2424 mm) |
| Reach At Max Lift And Dump | 29.02 in (737 mm) |
| Turning Radius From Center - Machine Rear | 62.21 in (1580 mm) |
| Turning Radius From Center - Inc Bucket | 76.34 in (1939 mm) |

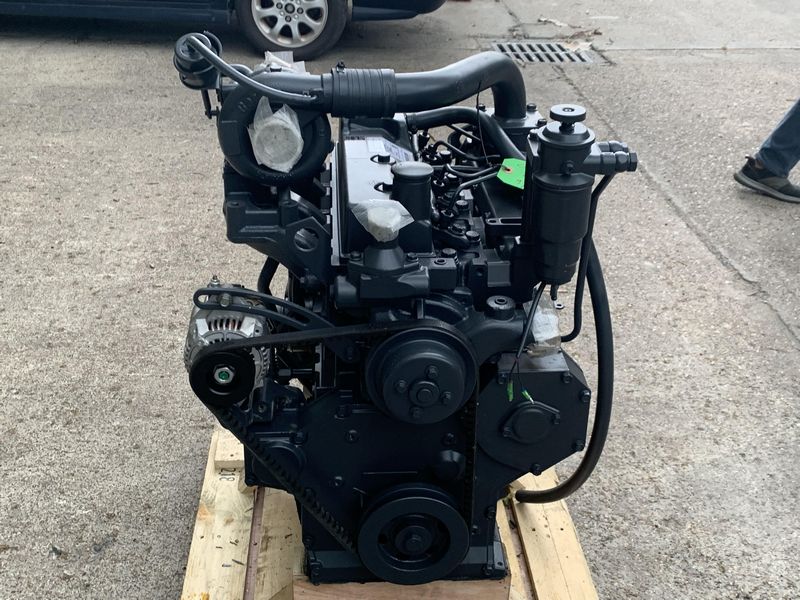

Engine
| Number Of Cylinders | 4 |
| Engine Make | 2347 |
| Engine Model | B3.3T |
| Net Power | 75 hp (56 kw) |
| Power Measured @ | 2600 rpm |
| Aspiration | turbocharged |
| Displacement | 198.9 cu in (3.3 L) |
Operational
| Operational Weight | 7478 lb (3392 kg) |
| Fuel Capacity | 15.9 gal (60 L) |
| Max Speed | 7.7 mph (12.3 km/h) |
| Tire Size | 12-16.5-8PR |
Loader
| Breakout Force | 4678 lb (2122 kg) |
| Operating Load Rating | 2500 lb (1134 kg) |
| Tipping Angle | 5000 degrees |
Hydraulic
| Pump Type | gear type |
| Pump Flow Capacity | 21.7 gal/min (82.2 L/min) |
| Relief Valve Pressure | 3001.5 psi (20700 kPa) |
