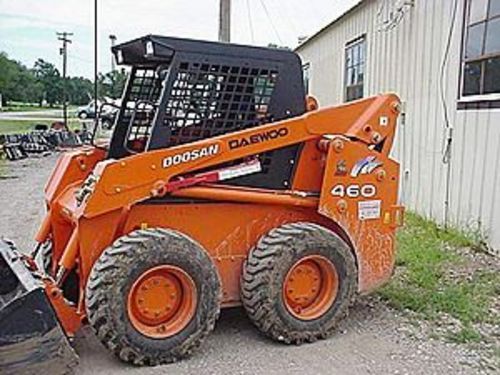

Doosan 460 Plus
Browse All Doosan or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 10.71 ft in (3264 mm) |
| Width Over Tires | 5.46 ft in (1662 mm) |
| Ground Clearance | 8.59 in (218 mm) |
| Height To Top Of Cab | 6.68 ft in (2035 mm) |
| Wheelbase | 3.49 ft in (1061 mm) |
| Length W/O Bucket | 8.45 ft in (2573 mm) |
| Clearance At Max Lift And Dump | 7.96 ft in (2424 mm) |
| Reach At Max Lift And Dump | 29.02 in (737 mm) |
| Turning Radius From Center - Machine Rear | 62.21 in (1580 mm) |
| Turning Radius From Center - Inc Bucket | 76.34 in (1939 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2348 |
| Engine Model | 4TNV98-ZNDS |
| Net Power | 69.9 hp (52.2 kw) |
| Power Measured @ | 2600 rpm |
| Displacement | 202.5 cu in (3.4 L) |
Operational
| Operational Weight | 6900.5 lb (3130 kg) |
| Fuel Capacity | 15.9 gal (60 L) |
| Max Speed | 7.8 mph (12.6 km/h) |
| Tire Size | 12-16.5-8PR |
Loader
| Breakout Force | 4678 lb (2122 kg) |
| Operating Load Rating | 2391 lb (1084.6 kg) |
| Tipping Angle | 4782 degrees |
Hydraulic
| Pump Type | gear type |
| Pump Flow Capacity | 21.7 gal/min (82.2 L/min) |
| Relief Valve Pressure | 3001.5 psi (20700 kPa) |
