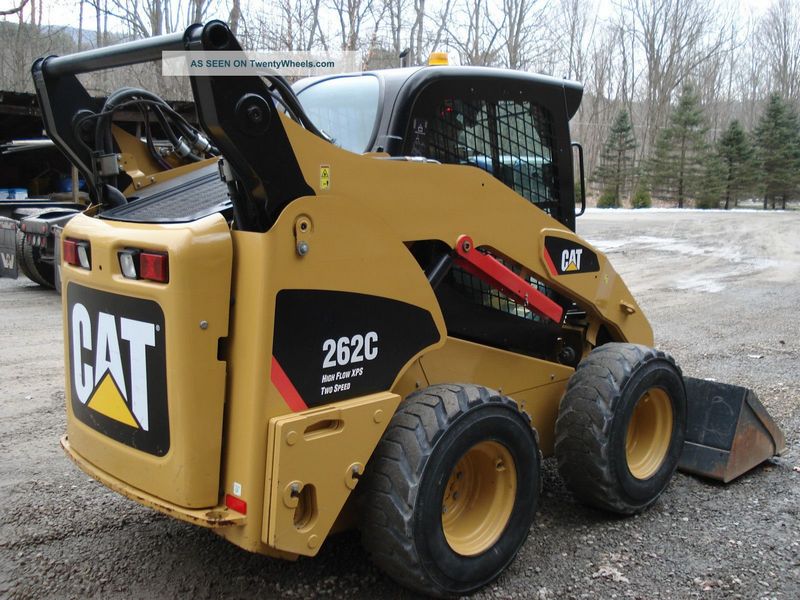

Caterpillar 262C
Browse All Caterpillar or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 12.08 ft in (3692 mm) |
| Width Over Tires | 5.5 ft in (1676 mm) |
| Ground Clearance | 8.81 in (223.52 mm) |
| Height To Top Of Cab | 6.83 ft in (2083 mm) |
| Wheelbase | 4.07 ft in (1240 mm) |
| Length W/O Bucket | 10.25 ft in (3124 mm) |
| Clearance At Max Lift And Dump | 8.03 ft in (2450 mm) |
| Reach At Max Lift And Dump | 30.7 in (781 mm) |
| Length - With Bucket On Ground | 145 in (3683 mm) |
| Length - Without Bucket | 117 in (2971.8 mm) |
| Maximum Dump Angle | 50 degrees |
| Maximum Reach - With Arms Parallel | 50.5 in (1282.7 mm) |
| Rack Back Angle - Maximum Height | 85 degrees |
| Reach - Maximum Lift/Dump | 30.7 in (779.78 mm) |
| Maximum Overall Height | 160.4 in (4074.16 mm) |
| Bucket Pin Height - Carry Position | 7.8 in (198.12 mm) |
| Bucket Pin Height - Maximum Lift | 10.59 ft in (0.27 m) |
| Bucket Pin Reach - Maximum Lift | 14.7 in (373.38 mm) |
| Bumper Overhang - Rear Axle | 42.8 in (1087.12 mm) |
| Clearance At Maximum Lift And Dump | 96.4 in (2448.56 mm) |
| Departure Angle | 26 degrees |
| Height - Top Of Cab | 6.9 ft in (0.18 m) |
| Turning Radius From Center - Inc Bucket | 97.8 in (2486 mm) |
| Turning Radius From Center - Machine Rear | 56.8 in (1443 mm) |
| Vehicle Width Over Tires | 66 in (1676.4 mm) |
| Wheel Base | 4.07 ft in (0.11 m) |
| Turn Radius From Center - Bucket | 85.3 in (2166.62 mm) |
| Turn Radius From Center - Coupler | 54.6 in (1386.84 mm) |
| Turn Radius From Center - Rear | 68.1 in (1729.74 mm) |
Operating Specifications
| Rated Operating Capacity With Optional Counterweight | 2945 lb (1335.83 kg) |
| Tipping Load | 5400 lb (2449.4 kg) |
| Breakout Force - Tilt Cylinder | 7315 lb (3318.03 kg) |
| Rated Operating Capacity | 2700 lb (1224.7 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2236 |
| Engine Model | 3044C DIT |
| Gross Power | 84 hp (62.7 kw) |
| Net Power | 82 hp (61 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 201 cu in (3.3 L) |
| Bore | 3.7 in (94 mm) |
| Stroke | 4.7 in (119.4 mm) |
| Gross Power - Sae J1995 | 84 hp (62.7 kw) |
| Engine Model | Cat C3.4 DIT |
| Engine Power - Iso 14396 | 83 hp (61.9 kw) |
| Net Power - Eec 80/1269 | 83 hp (61.9 kw) |
| Net Power - Iso 9249 Eec | 83 hp (61.9 kw) |
| Net Power - Sae 1349 | 82 hp (61.2 kw) |
| Net Flywheel Power | 82 hp (61.2 kw) |
Operational
| Operational Weight | 7968 lb (3614 kg) |
| Fuel Capacity | 26 gal (98 L) |
| Cooling System Fluid Capacity | 3.7 gal (14 L) |
| Engine Oil Fluid Capacity | 2.6 gal (10 L) |
| Hydraulic System Fluid Capacity | 15 gal (57 L) |
| Max Speed | 7.7 mph (12.5 km/h) |
| Chain Box Fluid Capacity - Each Side | 2.6 gal (10 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 90 amps |
Power Train
| Travel Speed Forward | 7.7 mph (12.4 km/h) |
| Travel Speed Reverse | 7.7 mph (12.4 km/h) |
| Travel Speed Reverse - 2-Speed Option | 12 mph (19.4 km/h) |
| Travel Speed Forward - 2-Speed Option | 12 mph (19.4 km/h) |
| Xdp Option Speed - With Tires | 6.5 mph (10.5 km/h) |
| Xdp Option Speed - With Vts Tracks | 4.8 mph (7.8 km/h) |
Loader
| Breakout Force | 7315 lb (3318 kg) |
| Operating Load Rating | 2700 lb (1225 kg) |
| Tipping Angle | 5400 degrees |
| Bucket Capacity | 0.6 yd3 (0.4 m3) |
Weights
| Operating Weight | 7968 lb (3614.3 kg) |
Hydraulic
| Pump Flow Capacity | 22 gal/min (84 L/min) |
| Relief Valve Pressure | 3335 psi (23000 kPa) |
Hydraulic System
| Hydraulic Flow (1) | Standard |
| Hydraulic Power | 42.8 hp (32 kw) |
| Maximum Loader Hydraulic Flow | 33 gal/min |
| Maximum Loader Hydraulic Pressure | 4061 psi |
| Loader Hydraulic Pressure | 3335 psi |
| Loader Hydraulic Flow | 22 gal/min |
| Hydraulic Flow (2) | High Flow XPS |
Service Refill Capacities
| Cooling System | 3.7 gal (14.1 L) |
| Fuel Tank | 26 gal (98.5 L) |
| Hydraulic Tank | 11 gal (41.7 L) |
| Engine Crankcase | 2.6 gal (9.9 L) |
| Hydraulic System | 15 gal (56.8 L) |
| Chain Box - Each Side | 2.6 gal (9.9 L) |
Cab
| Rops | SAE J1040 MAY94, ISO 3471:1994 |
| Fops | SAE J1043 SEPT87, ISO 3449:1992 Level I |
| Fops Level Ii | SAE J231 JAN81, ISO 3449:1992 Level II |
