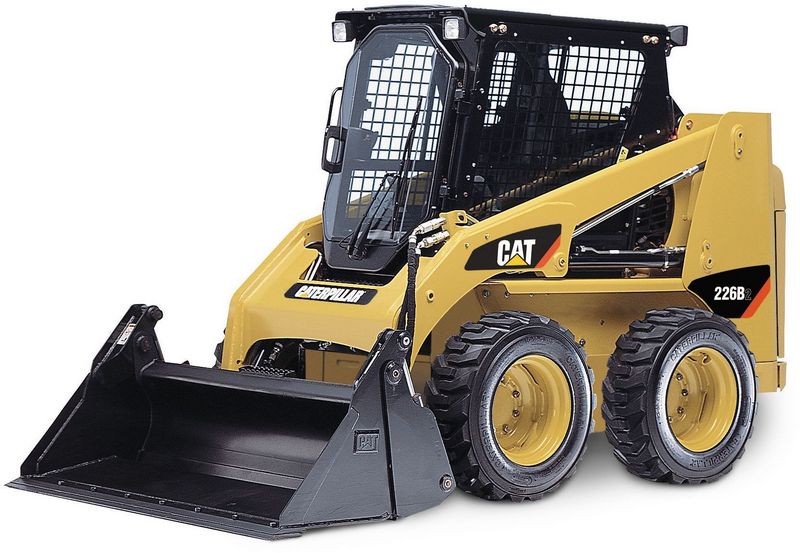

Caterpillar 232B Series 2
Browse All Caterpillar or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 11.25 ft in (3437 mm) |
| Width Over Tires | 5 ft in (1524 mm) |
| Ground Clearance | 5.7 in (144.78 mm) |
| Height To Top Of Cab | 6.42 ft in (1953 mm) |
| Wheelbase | 3.58 ft in (1094 mm) |
| Length W/O Bucket | 9.06 ft in (2760 mm) |
| Clearance At Max Lift And Dump | 7.36 ft in (2243 mm) |
| Reach At Max Lift And Dump | 30 in (766 mm) |
| Length - With Bucket On Ground | 135 in (3429 mm) |
| Length - Without Bucket | 108.7 in (2760.98 mm) |
| Maximum Dump Angle | 50 degrees |
| Maximum Reach - With Arms Parallel | 48.4 in (1229.36 mm) |
| Rack Back Angle - Maximum Height | 86.9 degrees |
| Reach - Maximum Lift/Dump | 30 in (762 mm) |
| Maximum Overall Height | 153.31 in (3893.82 mm) |
| Bucket Pin Height - Carry Position | 9.7 in (246.38 mm) |
| Bucket Pin Height - Maximum Lift | 9.89 ft in (0.26 m) |
| Bucket Pin Reach - Maximum Lift | 285 in (7239 mm) |
| Bumper Overhang - Rear Axle | 38.9 in (988.06 mm) |
| Clearance At Maximum Lift And Dump | 88.3 in (2242.83 mm) |
| Departure Angle | 28 degrees |
| Height - Top Of Cab | 6.42 ft in (0.17 m) |
| Turning Radius From Center - Inc Bucket | 87.4 in (2221 mm) |
| Turning Radius From Center - Machine Rear | 60.8 in (1545 mm) |
| Vehicle Width Over Tires | 60 in (1524 mm) |
| Wheel Base | 3.59 ft in (0.1 m) |
| Turn Radius From Center - Bucket | 87.4 in (2219.96 mm) |
| Turn Radius From Center - Coupler | 56.5 in (1435.1 mm) |
| Turn Radius From Center - Rear | 60.8 in (1544.32 mm) |
Operating Specifications
| Rated Operating Capacity With Optional Counterweight | 1945 lb (882.24 kg) |
| Tipping Load | 3956 lb (1794.42 kg) |
| Breakout Force - Tilt Cylinder | 4060 lb (1841.59 kg) |
| Rated Operating Capacity | 1900 lb (861.83 kg) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2236 |
| Engine Model | 3024C T |
| Gross Power | 61 hp (45.5 kw) |
| Net Power | 57 hp (42 kw) |
| Power Measured @ | 2600 rpm |
| Displacement | 134 cu in (2.2 L) |
| Bore | 3.3 in (83.9 mm) |
| Stroke | 3.9 in (99.1 mm) |
| Gross Power - Sae J1995 | 61 hp (45.5 kw) |
| Engine Model | Cat C2.2 T |
| Net Power - Sae 1349 | 56 hp (41.8 kw) |
| Net Flywheel Power | 56 hp (41.8 kw) |
Operational
| Operational Weight | 6737 lb (3056 kg) |
| Fuel Capacity | 15.3 gal (58 L) |
| Cooling System Fluid Capacity | 2.6 gal (10 L) |
| Engine Oil Fluid Capacity | 2.6 gal (10 L) |
| Hydraulic System Fluid Capacity | 14.5 gal (55 L) |
| Max Speed | 6.8 mph (11 km/h) |
| Chain Box Fluid Capacity - Each Side | 1.6 gal (6 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 65 amps |
Power Train
| Travel Speed Forward | 6.8 mph (11 km/h) |
| Travel Speed Reverse | 6.8 mph (11 km/h) |
Loader
| Breakout Force | 4060 lb (1841 kg) |
| Operating Load Rating | 1900 lb (861 kg) |
| Tipping Angle | 3956 degrees |
| Bucket Capacity | 0.5 yd3 (0.4 m3) |
Weights
| Operating Weight | 6737 lb (3055.9 kg) |
Hydraulic
| Pump Flow Capacity | 15.6 gal/min (60 L/min) |
| Relief Valve Pressure | 3335 psi (23000 kPa) |
Hydraulic System
| Hydraulic Power | 30.4 hp (22.7 kw) |
| Loader Hydraulic Pressure | 3335 psi |
| Loader Hydraulic Flow | 15.6 gal/min |
| Hydraulic Flow | Standard |
Service Refill Capacities
| Cooling System | 2.6 gal (9.9 L) |
| Fuel Tank | 15.3 gal (58 L) |
| Hydraulic Tank | 9.2 gal (34.9 L) |
| Engine Crankcase | 2.6 gal (9.9 L) |
| Hydraulic System | 14.5 gal (54.9 L) |
| Chain Box - Each Side | 1.6 gal (6.1 L) |
Cab
| Rops | SAE J1040 MAY94, ISO 3471:1994 |
| Fops | SAE J1043 SEPT87, ISO 3449:1992 Level I |
| Fops Level Ii | SAE J231 JAN81, ISO 3449:1992 Level II |
