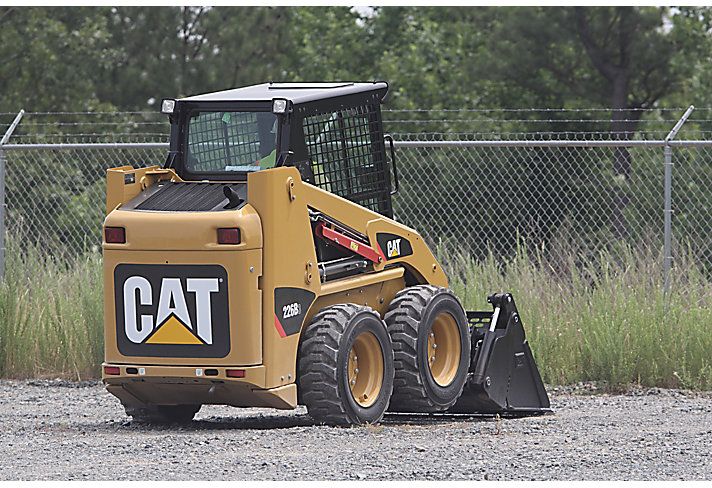

Caterpillar 226B Series 3
Browse All Caterpillar or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 10.61 ft in (3233 mm) |
| Width Over Tires | 5.01 ft in (1525 mm) |
| Ground Clearance | 8 in (203.2 mm) |
| Height To Top Of Cab | 6.4 ft in (1950 mm) |
| Wheelbase | 3.24 ft in (986 mm) |
| Length W/O Bucket | 8.27 ft in (2519 mm) |
| Clearance At Max Lift And Dump | 7.12 ft in (2169 mm) |
| Reach At Max Lift And Dump | 19.89 in (505 mm) |
| Length - Without Bucket | 99 in (2514.6 mm) |
| Maximum Dump Angle | 40 degrees |
| Maximum Overall Height | 146 in (3708.4 mm) |
| Rack Back Angle - Maximum Height | 81 degrees |
| Reach - Maximum Lift/Dump | 20 in (508 mm) |
| Maximum Reach - With Arms Parallel | 51 in (1295.41 mm) |
| Bucket Pin Height - Carry Position | 8 in (203.2 mm) |
| Bucket Pin Height - Maximum Lift | 9.34 ft in (0.24 m) |
| Bumper Overhang - Rear Axle | 38 in (965.2 mm) |
| Clearance At Maximum Lift And Dump | 85.4 in (2169.16 mm) |
| Departure Angle | 26 degrees |
| Height - Top Of Cab | 6.42 ft in (0.17 m) |
| Length - With Bucket On Ground | 127 in (3225.8 mm) |
| Turning Radius From Center - Inc Bucket | 76.54 in (1944 mm) |
| Turning Radius From Center - Machine Rear | 59.14 in (1502 mm) |
| Vehicle Width Over Tires | 60 in (1524 mm) |
| Wheel Base | 3.25 ft in (0.09 m) |
| Turn Radius From Center - Bucket | 77 in (1955.8 mm) |
| Turn Radius From Center - Coupler | 47 in (1193.8 mm) |
| Turn Radius From Center - Rear | 59 in (1498.6 mm) |
Operating Specifications
| Rated Operating Capacity With Optional Counterweight | 1600 lb (725.75 kg) |
| Tipping Load | 3000 lb (1360.78 kg) |
| Breakout Force - Tilt Cylinder | 4083 lb (1852.02 kg) |
| Rated Operating Capacity | 1500 lb (680.39 kg) |
Engine
| Engine Make | 2236 |
| Engine Model | C2.2T |
| Gross Power | 61 hp (45.5 kw) |
| Net Power | 56 hp (41.8 kw) |
| Displacement | 134 cu in (2.2 L) |
| Bore | 3.3 in (83.9 mm) |
| Stroke | 3.9 in (99.1 mm) |
| Gross Power - Sae J1995 | 61 hp (45.5 kw) |
| Engine Model | Cat C2.2 T |
| Net Power - Iso 9249 Eec | 56 hp (41.8 kw) |
| Net Power - Sae 1349 | 56 hp (41.8 kw) |
| Net Flywheel Power | 56 hp (41.8 kw) |
Operational
| Operational Weight | 5822 lb (2640.9 kg) |
| Fuel Capacity | 15.4 gal (58 L) |
| Cooling System Fluid Capacity | 2.7 gal (10 L) |
| Engine Oil Fluid Capacity | 2.7 gal (10 L) |
| Hydraulic System Fluid Capacity | 14.6 gal (55 L) |
| Chain Box Fluid Capacity - Each Side | 1.6 gal (6 L) |
| Operating Speed | 7.9 mph (12.7 km/h) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 85 amps |
Power Train
| Travel Speed Forward | 7.9 mph (12.8 km/h) |
| Travel Speed Reverse | 7.9 mph (12.8 km/h) |
Loader
| Breakout Force | 4083 lb (1852.1 kg) |
| Operating Load Rating | 1500 lb (680.4 kg) |
| Tipping Angle | 3000 degrees |
Weights
| Operating Weight | 5822 lb (2640.9 kg) |
Hydraulic
| Pump Flow Capacity | 16 gal/min (60.6 L/min) |
| Relief Valve Pressure | 3335 psi (22994 kPa) |
Hydraulic System
| Hydraulic Flow (1) | Standard |
| Maximum Loader Hydraulic Flow | 27 gal/min |
| Maximum Loader Hydraulic Pressure | 3335 psi |
| Loader Hydraulic Pressure | 3335 psi |
| Hydraulic Flow (2) | High Flow |
| Hydraulic Power - Calculated | 50.6 hp (37.8 kw) |
| Loader Hydraulic Flow (1) | 16 gal/min |
| Loader Hydraulic Flow (2) | 27 gal/min |
| Hydraulic Power (2) | 50.6 hp (37.8 kw) |
| Hydraulic Power (1) | 31.1 hp (23.2 kw) |
Service Refill Capacities
| Cooling System | 2.6 gal (9.9 L) |
| Fuel Tank | 15.4 gal (58.3 L) |
| Hydraulic Tank | 9.2 gal (34.9 L) |
| Engine Crankcase | 2.6 gal (9.9 L) |
| Hydraulic System | 14.5 gal (54.9 L) |
| Chain Box - Each Side | 1.6 gal (6.1 L) |
Cab
| Rops | SAE J1040 MAY94, ISO 3471:1994 |
| Fops | SAE J1043 SEPT87, ISO 3449:1992 Level I |
| Fops Level Ii | SAE J231 JAN81, ISO 3449:1992 Level II |
