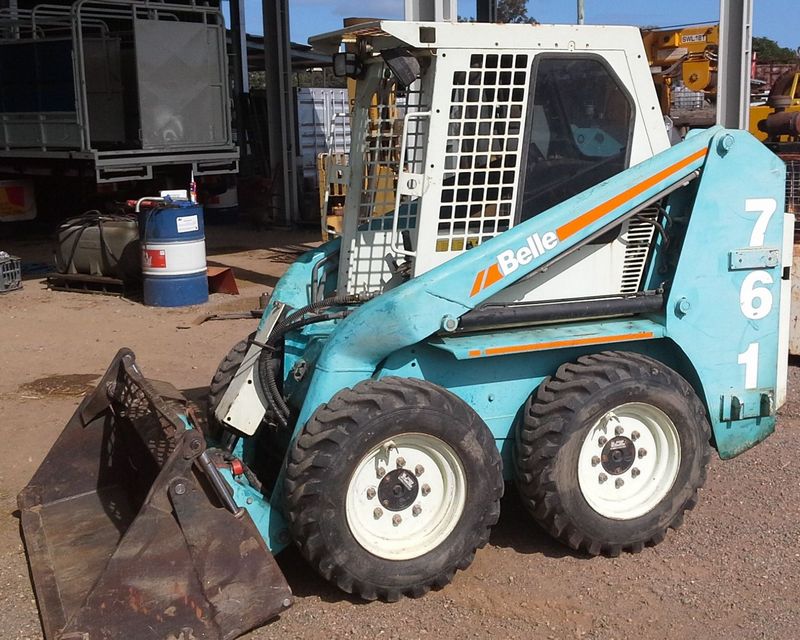

Belle 761
Browse All Belle or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 9.93 ft in (3024 mm) |
| Width Over Tires | 4.84 ft in (1475 mm) |
| Ground Clearance | 10 in (254 mm) |
| Height To Top Of Cab | 6.43 ft in (1957 mm) |
| Wheelbase | 2.92 ft in (890 mm) |
| Length W/O Bucket | 7.87 ft in (2398 mm) |
| Clearance At Max Lift And Dump | 7.47 ft in (2275 mm) |
| Reach At Max Lift And Dump | 21.26 in (540 mm) |
| Turning Radius From Center - Machine Rear | 43.63 in (1108 mm) |
| Turning Radius From Center - Inc Bucket | 69.73 in (1771 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2351 |
| Engine Model | 104-22 |
| Net Power | 48 hp (35.8 kw) |
| Power Measured @ | 2600 rpm |
| Aspiration | Natural |
| Displacement | 135.3 cu in (2.3 L) |
Operational
| Operational Weight | 4987 lb (2262.1 kg) |
| Fuel Capacity | 13.8 gal (52 L) |
| Hydraulic System Fluid Capacity | 14.6 gal (55 L) |
| Tire Size | 10x 16.5 |
Loader
| Breakout Force | 3616 lb (1640.2 kg) |
| Operating Load Rating | 1378 lb (625.1 kg) |
| Tipping Angle | 2756 degrees |
| Bucket Capacity | 0.5 yd3 (0.4 m3) |
Hydraulic
| Pump Flow Capacity | 15.9 gal/min (60 L/min) |
| Relief Valve Pressure | 2842 psi (19594.9 kPa) |
