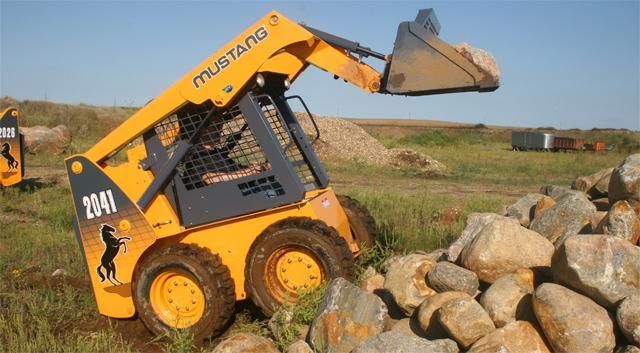

Mustang 2041
Browse All Mustang or Skid Steer Loader Models
Contents:
Dimensions
| Length With Bucket | 9.69 ft in (2951 mm) |
| Width Over Tires | 4.87 ft in (1483 mm) |
| Height To Top Of Cab | 9.17 ft in (2794 mm) |
| Wheelbase | 3.06 ft in (932 mm) |
| Length W/O Bucket | 7.6 ft in (2314 mm) |
| Clearance At Max Lift And Dump | 7.21 ft in (2197 mm) |
| Reach At Max Lift And Dump | 8.31 in (211 mm) |
| Turning Radius From Center - Machine Rear | 58.4 in (1483 mm) |
| Turning Radius From Center - Inc Bucket | 69.2 in (1758 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2348 |
| Engine Model | 4TNV88 |
| Net Power | 46 hp (34 kw) |
| Power Measured @ | 2600 rpm |
| Displacement | 134 cu in (2.2 L) |
Operational
| Operational Weight | 4600 lb (2087 kg) |
| Fuel Capacity | 12.4 gal (46.9 L) |
| Hydraulic System Fluid Capacity | 10 gal (37.8 L) |
| Max Speed | 6.4 mph (10.3 km/h) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 650 amps |
Loader
| Breakout Force | 2800 lb (12.4 kg) |
| Operating Load Rating | 1475 lb (669 kg) |
| Tipping Angle | 2700 degrees |
| Bucket Capacity | 0.4 yd3 (0.3 m3) |
Hydraulic
| Pump Flow Capacity | 16.5 gal/min (62.5 L/min) |
| Relief Valve Pressure | 2750 psi (18960.6 kPa) |
