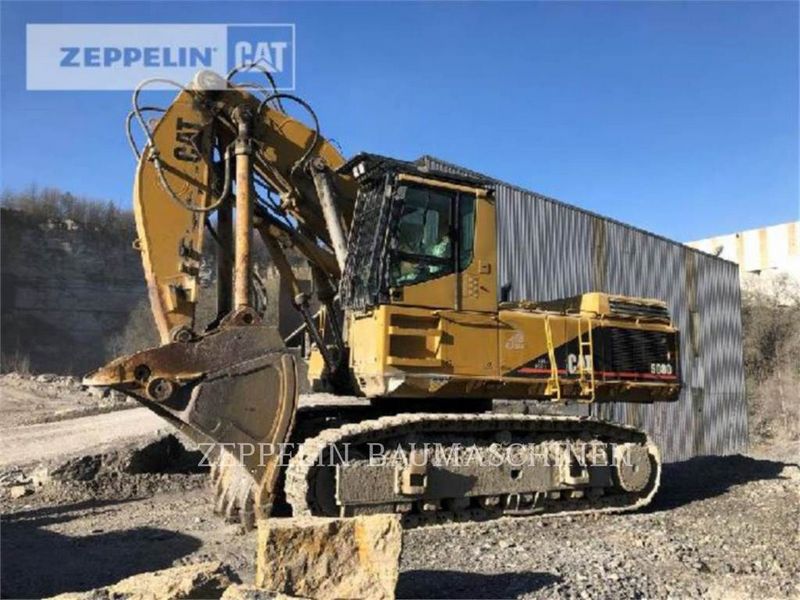

Caterpillar 5080
Browse All Caterpillar or Shovel Models
Contents:
Dimensions
| Width Over Tracks | 13.52 ft in (4120 mm) |
| Length Of Track On Ground | 19.17 ft in (5840 mm) |
| Height To Top Of Cab | 15.82 ft in (4820 mm) |
| Ground Clearance | 2.92 in (890 mm) |
| Upper Structure Ground Clearance | 5.32 ft in (1620 mm) |
| Length Of Tracks | 23.36 ft in (7120 mm) |
Loading Shovel
| Max Dig Reach | 22.97 ft in (7000 mm) |
| Max Cutting Height | 36.09 ft in (11000 mm) |
| Max Dig Depth | 8.86 ft in (2700 mm) |
Undercarriage
| Loading Shovel Ground Pressure | 16 psi (110.32 kPa) |
| Backhoe Operating Weight - Shoe 1 | 184747.39 lb (83800 kg) |
| Backhoe Shoe Width 1 | 29.53 in (750 mm) |
| Backhoe Ground Pressure - Shoe 1 | 16 psi (110.32 kPa) |
| Loading Shovel Operating Weight | 184747.39 lb (83800 kg) |
| Max Travel Speed | 2.74 mph (4.41 km/h) |
Engine
| Engine Model | 3406C ATAAC |
| Gross Power | 428 hp (319.2 kw) |
| Displacement | 891 cu in (14.6 L) |
Operational
| Fuel Capacity | 261.6 gal (990 L) |
