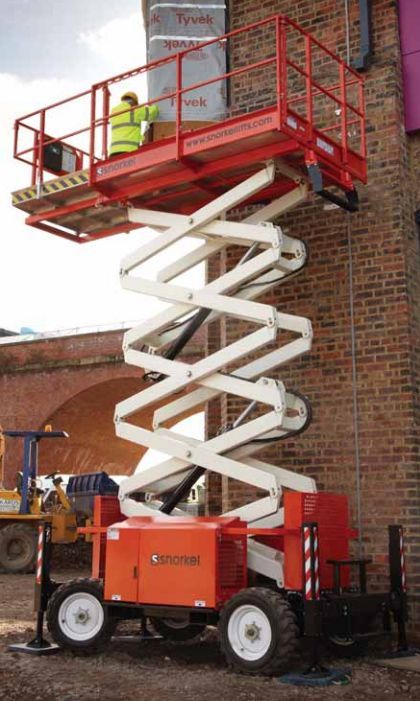

Snorkel SR3370
Browse All Snorkel or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 11.03 in (3360 mm) |
| Wheelbase | 6.57 ft in (2000 mm) |
| Overall Width | 5.81 ft in (1770 mm) |
| Ground Clearance | 11.82 in (300 mm) |
| Height W/O Rails | 8.86 ft in (2700 mm) |
| Turning Radius | 15.59 ft in (4750 mm) |
Platform
| Max Platform Height | 39.77 ft in (12120 mm) |
| Max Platform Weight Capacity | 992.09 lb (450 kg) |
Engine
| Fuel Type | diesel |
Operational
| Operating Weight | 7980.8 lb (3620 kg) |
| Tire Size | 27 x 10.5x15 |
