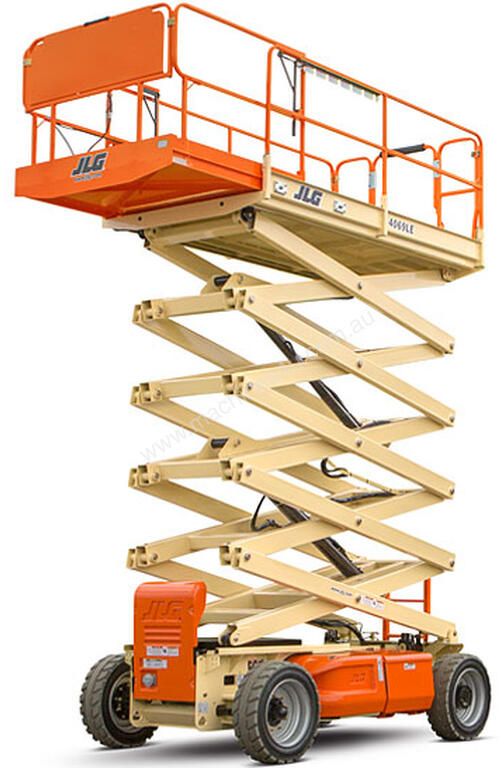

JLG M3369LE
Browse All JLG or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 122 in (3098.8 mm) |
| Wheelbase | 7.7 ft in (2346.96 mm) |
| Overall Width | 5.9 ft in (1798.32 mm) |
| Ground Clearance | 8 in (203.2 mm) |
| Platform Dimension A | 9.7 ft in (2.96 m) |
| Platform Dimension B | 5.5 ft in (1.68 m) |
| Overall Height | 9 ft in (2743.2 mm) |
| Turning Radius | 15.6 ft in (4754.88 mm) |
Platform
| Max Platform Height | 5.7 ft in (1737.36 mm) |
| Height Of Rails | 3.8 ft in (1158.24 mm) |
| Lift Time | 38 sec |
| Max Working Height | 39 ft in (11887.2 mm) |
| Lower Time | 42 sec |
| Platform Capacity - Extension | 250 lb (113.4 kg) |
| Platform Railing Height | 33.01 ft in (10.06 m) |
Engine
| Fuel Tank | 4 gal (15.2 L) |
| Generator (Brand , Hp , Fuel Type) | Kubota , 6 HP , Diese |
| Maximum Ground Bearing Pressure | 57 psi (393.1 kPa) |
| Battery Amp Hours | 8 x 6V, 370 amp-hours |
| Charger Amps | 21 amps |
Operational
| Operating Weight | 10060 lb (4563.2 kg) |
| Hydraulic System Fluid Capacity | 8.5 gal (32.2 L) |
| Tire Size | 240/55 x 17.5 Non-Marking |
| Hydraulic Pump Type | Fixed Displacement Gear |
Performance
| Drive Speed - Platform Elevated | 0.4 mph (0.7 km/h) |
| Drive Speed - Platform Lowered | 3 mph (4.9 km/h) |
| Maximum Drive Height | 33.1 ft in (10.1 m) |
| Maximum Lift Height | 33.1 ft in (10.1 m) |
| Platform Capacity | 1000 lb (453.6 kg) |
Brakes
| Brakes Type | Spring Applied Hyd. Released Discs |
