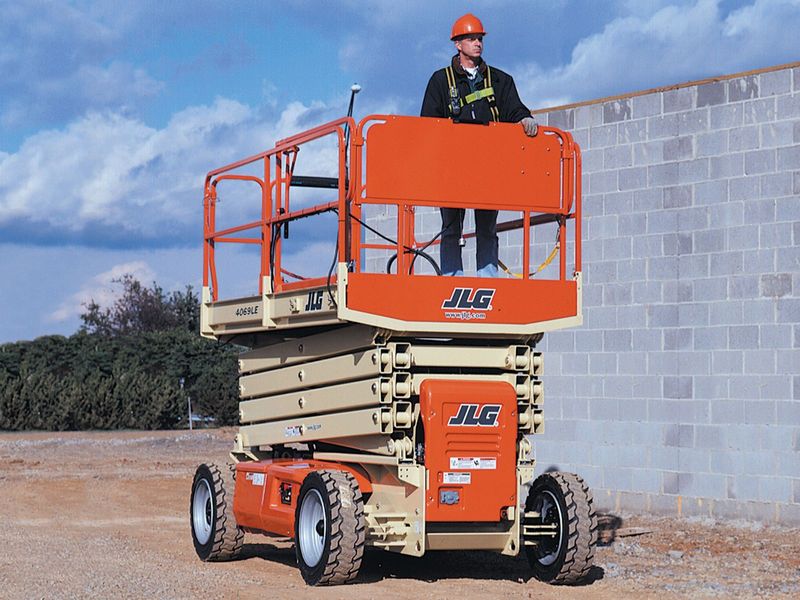

JLG 4069LE
Browse All JLG or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 10.4 in (264.17 mm) |
| Wheelbase | 7.7 ft in (2346.96 mm) |
| Overall Width | 5.9 ft in (1798.32 mm) |
| Height W/ Rails | 9.22 ft in (2810 mm) |
| Ground Clearance | 8 in (203.2 mm) |
| Overall Height | 7.1 ft in (2164.08 mm) |
| Height W/O Rails | 6.57 ft in (2000 mm) |
| Platform Dimension A | 9.7 ft in (2.96 m) |
| Platform Dimension B | 5.5 ft in (1.68 m) |
| Turning Radius | 14.5 ft in (4419.61 mm) |
Platform
| Max Platform Height | 5.9 ft in (1798.32 mm) |
| Deck Extension | 35.83 in (910 mm) |
| Height Of Rails | 3.8 ft in (1158.24 mm) |
| Platform Capacity - Extension | 300.01 lb (136.09 kg) |
| Platform Railing Height | 40 ft in (12.19 m) |
| Lift Time | 54 sec |
| Platform Inner Length | 114.97 in (2920 mm) |
| Platform Inner Width | 64.97 in (1650 mm) |
| Lower Time | 50 sec |
| Max Platform Weight Capacity | 1000.9 lb (454 kg) |
| Max Working Height | 46 ft in (14020.8 mm) |
Engine
| Maximum Ground Bearing Pressure | 33 psi (227.6 kPa) |
| Engine Make | 0 |
| Number Of Batteries | 6 |
| Battery Amp Hours | 8 x 6V, 370 amp-hours |
| Charger Amps | 21 amps |
Operational
| Operating Weight | 7360 lb (3338.5 kg) |
| Hydraulic System Fluid Capacity | 4 gal (15 L) |
| Max Speed | 3 mph (4.8 km/h) |
| Tire Size | 240/55-17.5 |
| Tire Fill/Type | Non-marking |
| Hydraulic Pump Type | Single Section Gear Pump |
Performance
| Drive Speed - Platform Elevated | 0.5 mph (0.9 km/h) |
| Drive Speed - Platform Lowered | 3.5 mph (5.7 km/h) |
| Maximum Drive Height | 26 ft in (8 m) |
| Maximum Lift Height | 40 ft in (12.2 m) |
| Platform Capacity | 1250 lb (567 kg) |
Brakes
| Brakes Type | Spring Applied Hyd Released Discs |
