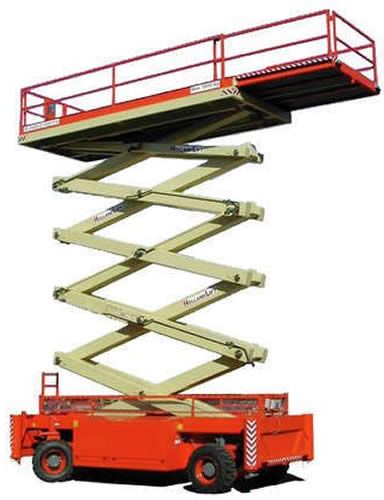

Holland Lift X150DL18
Browse All Holland Lift or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 11.49 in (3500 mm) |
| Wheelbase | 8.01 ft in (2440 mm) |
| Overall Width | 5.98 ft in (1820 mm) |
| Height W/ Rails | 9.19 ft in (2800 mm) |
| Ground Clearance | 8.08 in (205 mm) |
| Height W/O Rails | 6.57 ft in (2000 mm) |
Platform
| Max Platform Height | 34.45 ft in (10500 mm) |
| Deck Extension | 55.12 in (1400 mm) |
| Max Working Height | 41.02 ft in (12500 mm) |
| Max Platform Weight Capacity | 1102.32 lb (500 kg) |
| Lower Time | 34 sec |
| Platform Inner Length | 126.38 in (3210 mm) |
| Platform Inner Width | 68.51 in (1740 mm) |
| Lift Time | 48 sec |
Engine
| Engine Make | 2334 |
| Engine Model | D722 |
Operational
| Operating Weight | 11816.8 lb (5360 kg) |
| Max Speed | 1.7 mph (2.6 km/h) |
| Tire Size | 26x12x12 |
