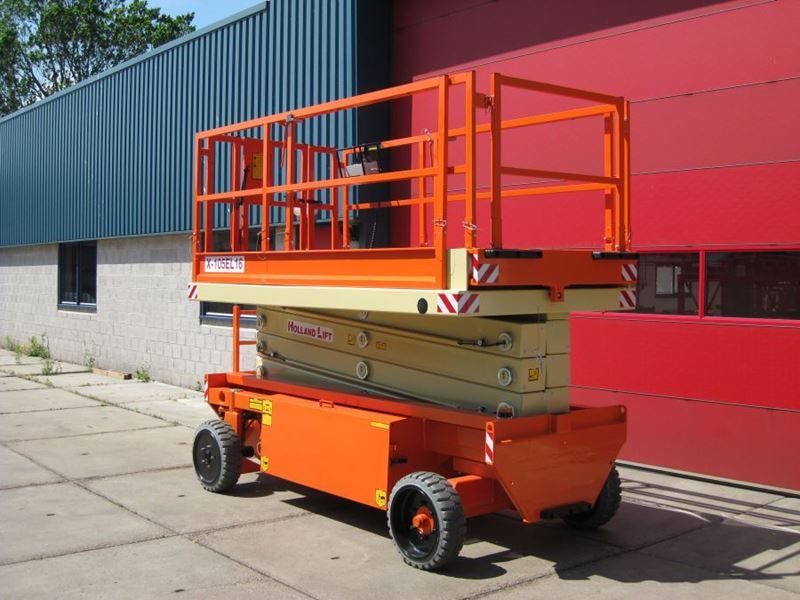

Holland Lift X105EL16
Browse All Holland Lift or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 11.49 in (3500 mm) |
| Wheelbase | 8.01 ft in (2440 mm) |
| Overall Width | 5.12 ft in (1560 mm) |
| Height W/ Rails | 9.13 ft in (2780 mm) |
| Ground Clearance | 6.89 in (175 mm) |
| Height W/O Rails | 6.5 ft in (1980 mm) |
Platform
| Max Platform Height | 34.45 ft in (10500 mm) |
| Deck Extension | 55.12 in (1400 mm) |
| Max Working Height | 41.02 ft in (12500 mm) |
| Max Platform Weight Capacity | 1102.32 lb (500 kg) |
| Lower Time | 36 sec |
| Platform Inner Length | 126.38 in (3210 mm) |
| Platform Inner Width | 60.63 in (1540 mm) |
| Lift Time | 45 sec |
Engine
| Engine Make | 0 |
| System Voltage | 48 V |
| Battery Amp Hours | 240 |
Operational
| Operating Weight | 10626.3 lb (4820 kg) |
| Max Speed | 2.1 mph (3.3 km/h) |
| Tire Size | 22x7x16 |
