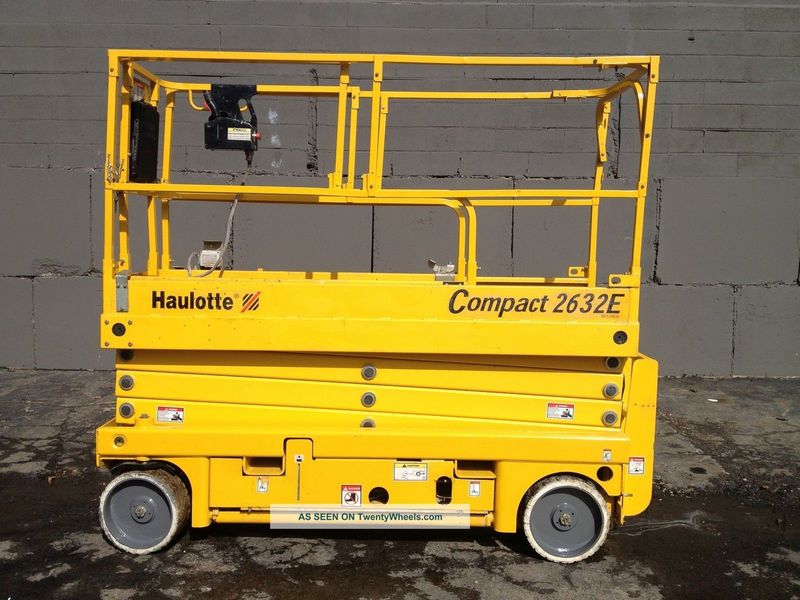

Haulotte COMPACT 2632 E
Browse All Haulotte or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 8.2 in (208.28 mm) |
| Wheelbase | 6.1 ft in (1859.28 mm) |
| Overall Width | 2.8 ft in (853.44 mm) |
| Height W/ Rails | 7.2 ft in (2194.56 mm) |
| Ground Clearance | 5 in (127 mm) |
| Gradeability | 23 % |
| Turning Radius | 7.1 ft in (2164.08 mm) |
Platform
| Max Platform Height | 26.3 ft in (8016.24 mm) |
| Deck Extension | 36 in (914.4 mm) |
| Max Working Height | 32.3 ft in (9845.05 mm) |
| Max Platform Weight Capacity | 500 lb (226.8 kg) |
| Platform Inner Length | 91 in (2311.4 mm) |
| Platform Inner Width | 32 in (812.8 mm) |
| Lower Time | 42 sec |
| Lift Time | 36 sec |
Engine
| System Voltage | 24 V |
| Battery Amp Hours | 225 |
Operational
| Operating Weight | 3649 lb (1655.2 kg) |
| Hydraulic System Fluid Capacity | 7.1 gal (26.9 L) |
| Max Speed | 2.1 mph (3.4 km/h) |
| Tire Size | 15x5 |
