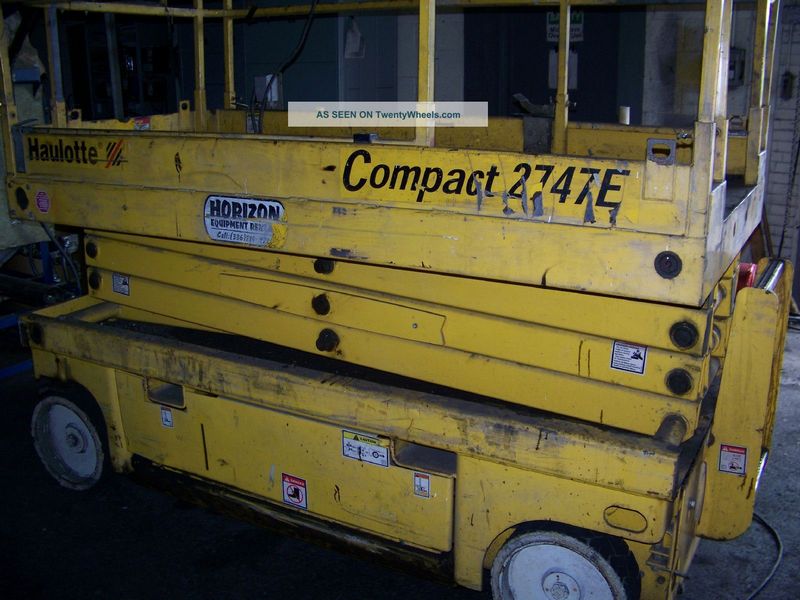

Haulotte Compact 2747E
Browse All Haulotte or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 8.2 in (208.28 mm) |
| Wheelbase | 6.1 ft in (1859.28 mm) |
| Overall Width | 3.11 ft in (947.93 mm) |
| Height W/ Rails | 7.5 ft in (2286 mm) |
| Ground Clearance | 6 in (152.4 mm) |
| Height W/O Rails | 3.25 ft in (990.6 mm) |
| Turning Radius | 8.2 ft in (2499.36 mm) |
| Gradeability | 23 % |
Platform
| Max Platform Height | 26.9 ft in (8199.13 mm) |
| Deck Extension | 36 in (914.4 mm) |
| Max Working Height | 32.9 ft in (10027.92 mm) |
| Max Platform Weight Capacity | 1000 lb (453.6 kg) |
| Platform Inner Length | 79 in (2006.6 mm) |
| Platform Inner Width | 47 in (1193.8 mm) |
| Lower Time | 42 sec |
| Lift Time | 32 sec |
Engine
| System Voltage | 24 V |
| Battery Amp Hours | 330 |
Operational
| Operating Weight | 5138 lb (2330.6 kg) |
| Hydraulic System Fluid Capacity | 7 gal (26.5 L) |
| Max Speed | 1.8 mph (2.9 km/h) |
| Tire Size | 15x5 |
| Tire Fill/Type | Foam |
