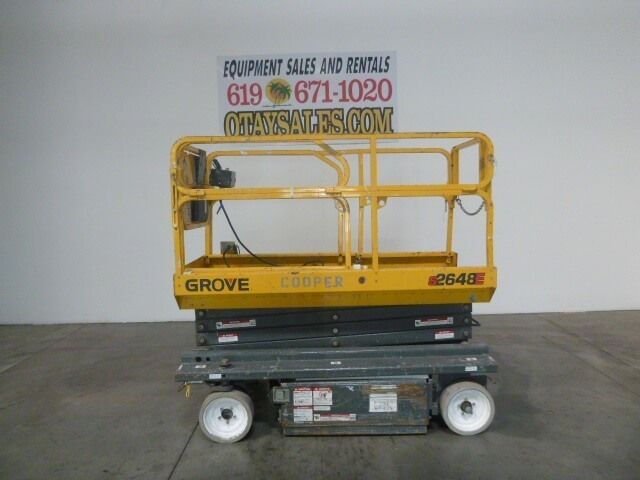

Grove S2648E
Browse All Grove or Scissor Lift Models
Contents:
Dimensions
| Overall Length | 7.52 in (2290 mm) |
| Wheelbase | 5.68 ft in (1730 mm) |
| Overall Width | 3.97 ft in (1210 mm) |
| Height W/ Rails | 7.06 ft in (2150 mm) |
| Ground Clearance | 3.75 in (95.25 mm) |
| Height W/O Rails | 3.45 ft in (1050 mm) |
Platform
| Max Platform Height | 25.99 ft in (7920 mm) |
| Deck Extension | 35.83 in (910 mm) |
| Height Of Rails | 3.61 ft in (1100 mm) |
| Max Working Height | 31.99 ft in (9750 mm) |
| Lower Time | 20 sec |
| Lift Time | 40 sec |
| Platform Inner Length | 90.16 in (2290 mm) |
| Platform Inner Width | 41.74 in (1060 mm) |
| Max Platform Weight Capacity | 750.02 lb (340.2 kg) |
Engine
| System Voltage | 24 V |
| Number Of Batteries | 4 |
| Battery Amp Hours | 235 |
| Charger Amps | 25 amps |
Operational
| Operating Weight | 4795.1 lb (2175 kg) |
| Max Speed | 2.5 mph (4.1 km/h) |
| Tire Size | 15x5 |
| Tire Fill/Type | Solid non-marking |
