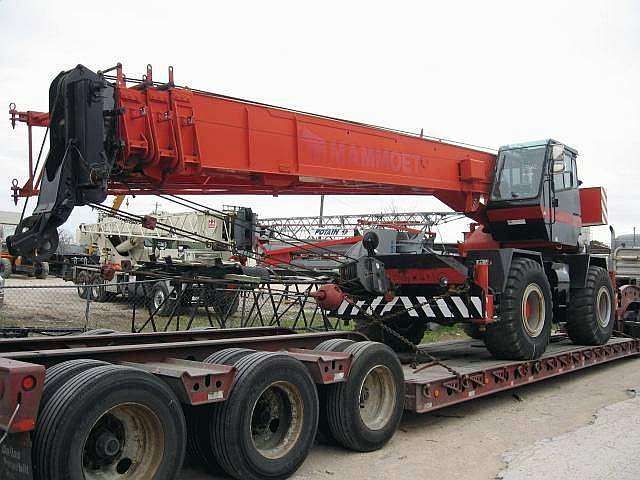

Terex RT600
Browse All Terex or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 36 ft in (10.98 m) |
| Max Height @ Max Raise Angle - No Jib | 111 ft in (33.84 m) |
| Max Elevating Angle | 76 degrees |
| Swing Speed | 1.9 rpm |
| Number Of Sections | 4 |
Dimensions
| Transport Length | 45.92 ft in (13994 mm) |
| Transport Width | 9.84 ft in (2998 mm) |
| Transport Height | 12.45 ft in (3794 mm) |
| Wheelbase | 13.13 in (4002 mm) |
| Ground Clearance | 1.97 ft in (600 mm) |
| Width W/ Outriggers Extended | 26 ft in (7924 mm) |
| Carrier/Base Length | 27.1 ft in (8258 m) |
Engine
| Engine Make | 2347 |
| Engine Model | QSB215 |
| Gross Power | 255 hp (190.2 kw) |
| Net Power | 215 hp (160.4 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 655 lb ft (888.1 Nm) |
| Torque Measured @ | 1500 rpm |
| Displacement | 359 cu in (5.9 L) |
| Aspiration | Turbocharged & charge air cooled |
Operational
| Operating Weight | 85694 lb (38870.2 kg) |
| Fuel Capacity | 50 gal (189.3 L) |
| Hydraulic System Fluid Capacity | 116 gal (439.2 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 102 amps |
| Tire Size | 29.50 x 25, 28 P.R. |
Transmission
| Transmission Type | Power-Shift Transmission |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 6 |
| Max Speed - Forward | 23.4 mph (37.7 km/h) |
