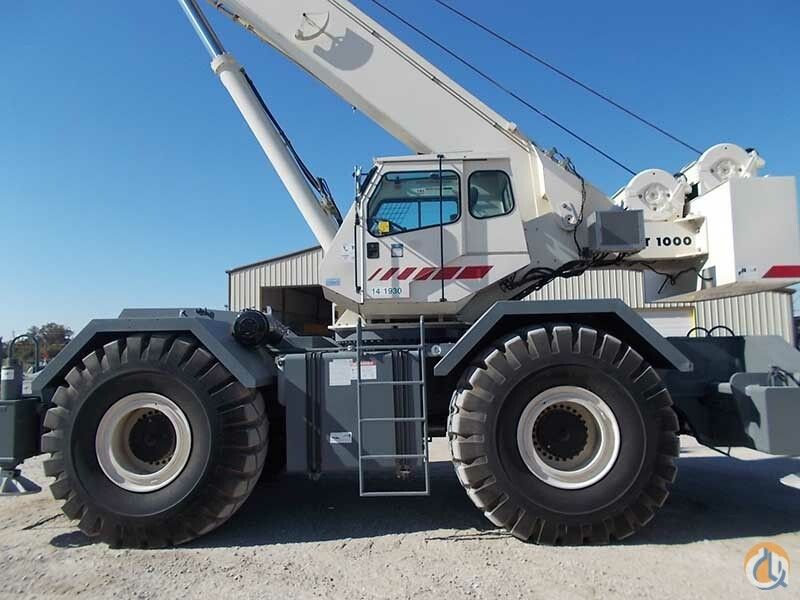

Terex RT1000
Browse All Terex or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 40 ft in (12.2 m) |
| Max Height @ Max Raise Angle - No Jib | 126 ft in (38.41 m) |
| Max Elevating Angle | 82 degrees |
| Swing Speed | 1.5 rpm |
| Number Of Sections | 4 |
Dimensions
| Transport Length | 48.59 ft in (14810 mm) |
| Transport Width | 12.22 ft in (3724 mm) |
| Transport Height | 13.42 ft in (4089 mm) |
| Wheelbase | 12.92 in (3937 mm) |
| Ground Clearance | 1.44 ft in (438 mm) |
| Width W/ Outriggers Extended | 27.17 ft in (8280 mm) |
| Carrier/Base Length | 28.88 ft in (8801 m) |
Engine
| Engine Make | 2347 |
| Engine Model | 6CTA8.3L |
| Gross Power | 275 hp (205.1 kw) |
| Net Power | 260 hp (193.9 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 828 lb ft (1122.7 Nm) |
| Torque Measured @ | 1300 rpm |
| Displacement | 504.5 cu in (8.3 L) |
| Aspiration | Turbocharged & Charge air cooled |
Operational
| Operating Weight | 116588 lb (52883.5 kg) |
| Fuel Capacity | 80 gal (302.9 L) |
| Hydraulic System Fluid Capacity | 303 gal (1147 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Tire Size | 32.25 x 29 - 32 P.R. |
Transmission
| Transmission Type | Power-Shift Transmission |
| Number Of Forward Gears | 8 |
| Number Of Reverse Gears | 6 |
| Max Speed - Forward | 24.8 mph (40 km/h) |
