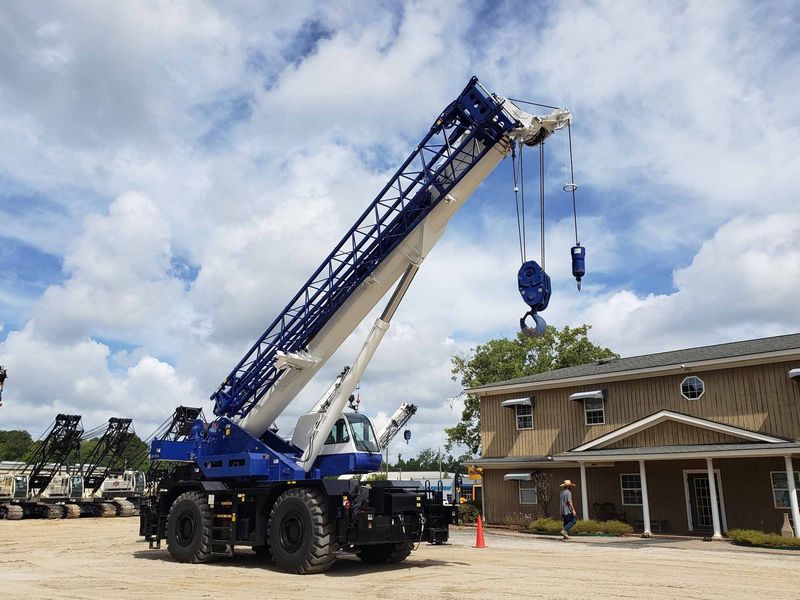

Tadano GR750XL
Browse All Tadano or Rough Terrain Crane Models
Contents:
Boom
| Max Elevating Angle | 60 degrees |
| Number Of Sections | 5 |
Dimensions
| Transport Length | 437.6 ft in (133380 mm) |
| Transport Width | 10.88 ft in (3315 mm) |
| Transport Height | 12.44 ft in (3790 mm) |
| Wheelbase | 155.52 in (3950 mm) |
| Ground Clearance | 1.46 ft in (445 mm) |
| Gradeability | 147 % |
Engine
| Engine Make | Cummins |
| Engine Model | QSB6.7 |
| Gross Power | 270 hp (201.4 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 730 lb ft (989.8 Nm) |
| Torque Measured @ | 1500 rpm |
| Displacement | 408.9 cu in (6.7 L) |
| Bore | 4.3 in (107 mm) |
| Stroke | 4.9 in (124.1 mm) |
Operational
| Def Tank Capacity | 10 gal (37.9 L) |
| Fuel Capacity | 79.2 gal (299.9 L) |
| Cooling System Fluid Capacity | 7.4 gal (28 L) |
| Tire Size | 29.5-25 34 PR |
Transmission
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 22.4 mph (36 km/h) |
