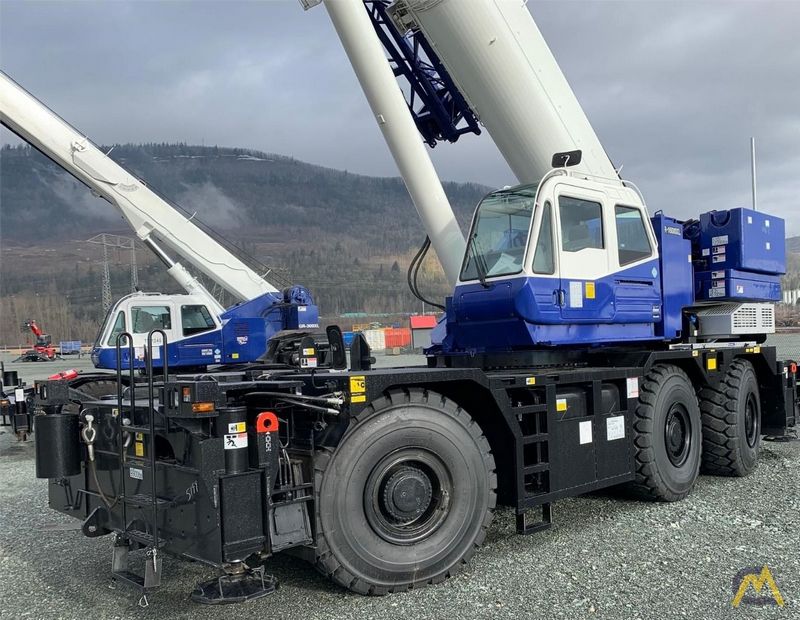

Tadano GR1600XL
Browse All Tadano or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 140.42 ft in (42.8 m) |
| Max Height @ Max Raise Angle - No Jib | 656.5 ft in (200.1 m) |
| Min Operating Radius | 9.81 ft in (2.99 m) |
| Max Elevating Angle | 60 degrees |
| Max Operating Radius | 26.91 ft in (8.2 m) |
| Number Of Sections | 6 |
| Max Lift Capacity | 15873.29 lb (7200 kg) |
Dimensions
| Transport Length | 53.12 ft in (16190 mm) |
| Transport Width | 10.88 ft in (3315 mm) |
| Transport Height | 12.42 ft in (3785 mm) |
| Wheelbase | 157.49 in (4000 mm) |
| Ground Clearance | 1.46 ft in (445 mm) |
| Carrier/Base Length | 32.15 ft in (9.8 m) |
| Gradeability | 44 % |
Engine
| Battery | 240 AH |
| Cooling Method | Liquid pressurized |
| Engine Make | Cummins |
| Engine Model | QSB6.7 |
| Gross Power | 270 hp (201.4 kw) |
| Air Cleaner | Dry Type |
| Power Measured @ | 2000 rpm |
| Max Torque | 730 lb ft (989.8 Nm) |
| Torque Measured @ | 1500 rpm |
| Displacement | 408.9 cu in (6.7 L) |
| Bore | 4.3 in (107 mm) |
| Stroke | 4.9 in (124.1 mm) |
| Aspiration | Turbocharged |
Operational
| Def Tank Capacity | 10 gal (37.9 L) |
| Operating Weight | 352739.6 lb (160000 kg) |
| Fuel Capacity | 79.2 gal (299.9 L) |
| Cooling System Fluid Capacity | 7.7 gal (29 L) |
| Operating Voltage | 24 V |
| Tire Size | 26.5 R25 |
Transmission
| Transmission Type | Electronically controlled full automatic |
| Number Of Forward Gears | 5 |
| Number Of Reverse Gears | 2 |
| Max Travel Speed | 9.3 mph (15 km/h) |
| Min Travel Speed | 2.4 mph (3.9 km/h) |
