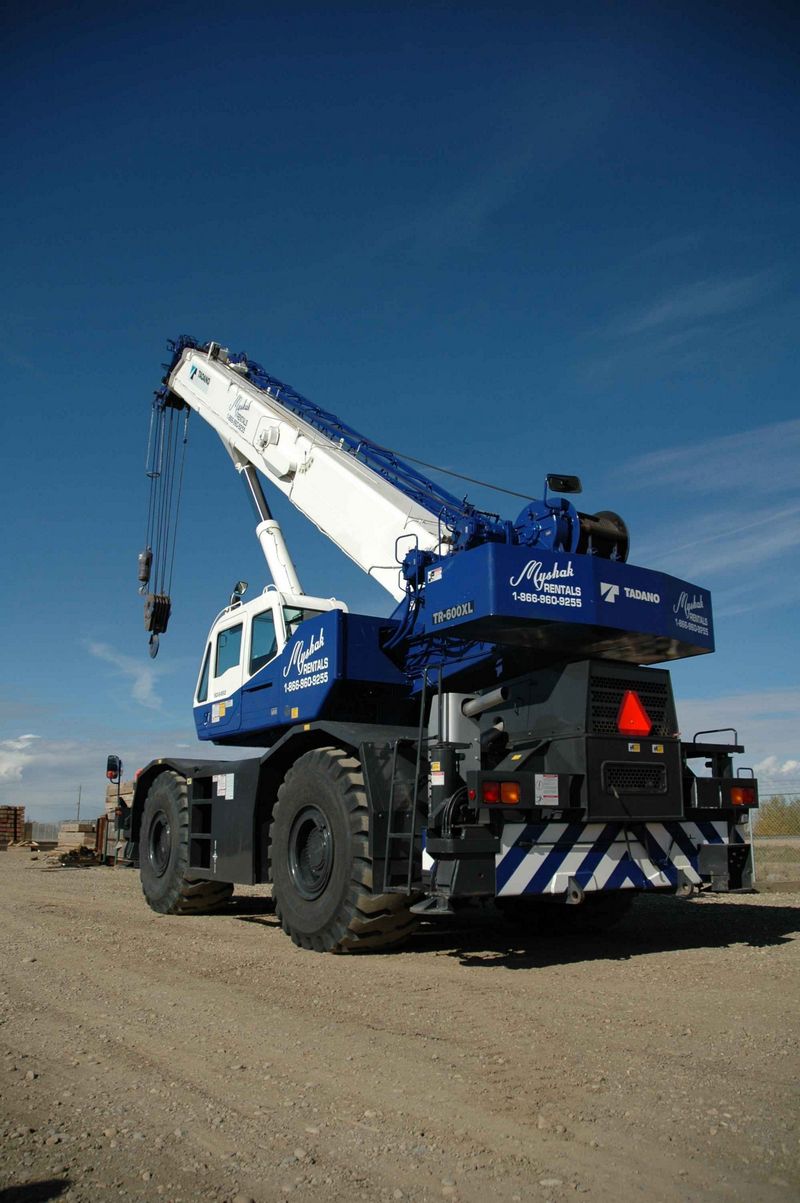

Tadano GR600XL-1
Browse All Tadano or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 44 ft in (13.42 m) |
| Max Height @ Max Raise Angle - No Jib | 146 ft in (44.51 m) |
| Min Operating Radius | 10 ft in (3.05 m) |
| Max Elevating Angle | 80.5 degrees |
| Max Operating Radius | 125 ft in (38.1 m) |
| Swing Speed | 2.5 rpm |
| Max Lift Capacity | 120000 lb (54431.09 kg) |
| Number Of Sections | 5 |
Dimensions
| Transport Length | 45.44 ft in (13850 mm) |
| Transport Width | 10.88 ft in (3315 mm) |
| Transport Height | 12.67 ft in (3860 mm) |
| Wheelbase | 12.96 in (3950 mm) |
| Width W/ Outriggers Extended | 23.63 ft in (7200 mm) |
| Upper Structure Tail Swing Radius | 13.52 ft in (4120 mm) |
Engine
| Engine Make | 2251 |
| Engine Model | 6M60-TLA3B |
| Gross Power | 267 hp (199.2 kw) |
| Power Measured @ | 2600 rpm |
| Max Torque | 579 lb ft (785.1 Nm) |
| Torque Measured @ | 1400 rpm |
| Displacement | 460.5 cu in (7.6 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 95877 lb (43489.1 kg) |
| Fuel Capacity | 79.3 gal (300 L) |
| Hydraulic System Fluid Capacity | 195.5 gal (740 L) |
| Engine Oil Capacity | 4 gal (15 L) |
| Cooling System Fluid Capacity | 3.5 gal (13 L) |
| Operating Voltage | 24 V |
| Tire Size | 29.5-25 22PR |
Transmission
| Transmission Type | full automatic power shift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 24.9 mph (40 km/h) |
