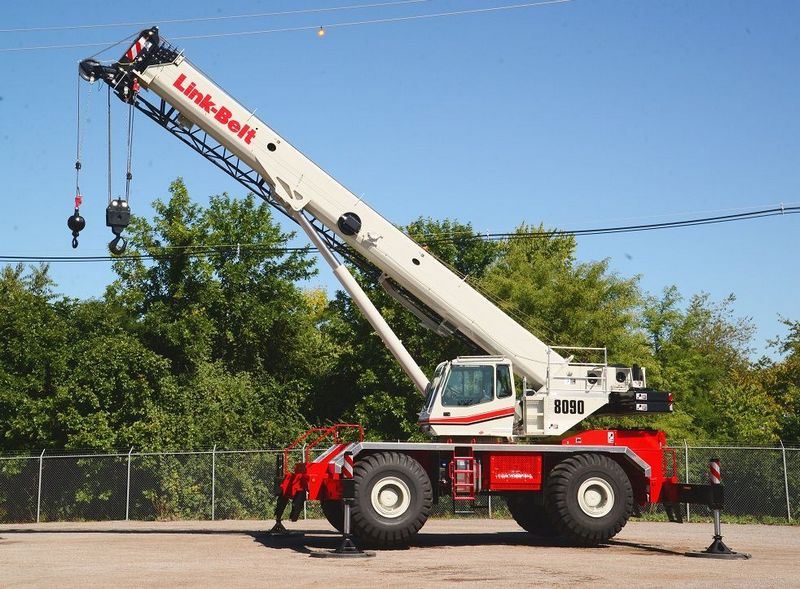

Link-Belt RTC8090 Series II
Browse All Link-Belt or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 47 ft in (14.33 m) |
| Max Height @ Max Raise Angle - No Jib | 149.61 ft in (45.6 m) |
| Min Operating Radius | 8 ft in (2.44 m) |
| Max Elevating Angle | 80 degrees |
| Max Operating Radius | 130 ft in (39.63 m) |
| Number Of Sections | 5 |
| Max Lift Capacity | 180000 lb (81646.64 kg) |
| Swing Speed | 1.9 rpm |
Dimensions
| Transport Length | 47.45 ft in (14460 mm) |
| Transport Width | 10.77 ft in (3280 mm) |
| Transport Height | 13 ft in (3960 mm) |
| Wheelbase | 172.05 in (4370 mm) |
| Ground Clearance | 1.58 ft in (480 mm) |
| Width W/ Outriggers Extended | 24.02 ft in (7320 mm) |
| Carrier/Base Length | 27.14 ft in (8270 m) |
| Upper Structure Tail Swing Radius | 13.82 ft in (4210 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | Cummins QSB |
| Engine Model | C6.6 |
| Emissions Compliance | Tier 4F / Stage IV |
| Gross Power | 270 hp (201.4 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 730.2 lb ft (990 Nm) |
| Torque Measured @ | 1500 rpm |
| Displacement | 408.9 cu in (6.7 L) |
| Bore | 4.3 in (107 mm) |
| Stroke | 4.9 in (124 mm) |
| Crankcase Capacity | 14.2 L |
Operational
| Def Tank Capacity | 5 gal (19 L) |
| Operating Weight | 80680.4 lb (36596 kg) |
| Fuel Capacity | 75 gal (283.9 L) |
| Hydraulic System Fluid Capacity | 153 gal (579.2 L) |
| Engine Oil Capacity | 4.6 gal (17.4 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 160 amps |
| Tire Size | 29.5x25 |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 6 |
| Max Speed - Forward | 18.4 mph (29.6 km/h) |
| Max Speed - Reverse | 18.4 mph (29.6 km/h) |
