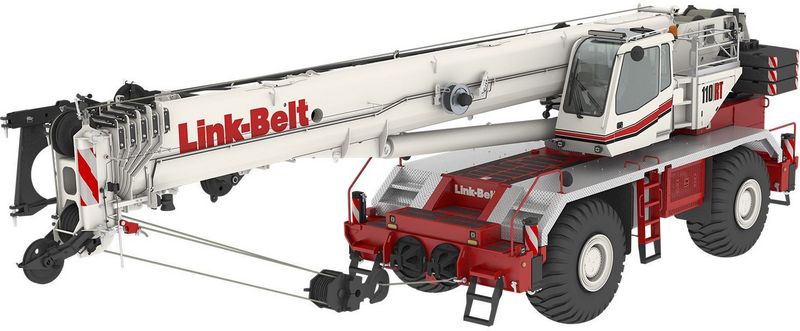

Link-Belt RTC-80110 SERIES II
Browse All Link-Belt or Rough Terrain Crane Models
Contents:
Boom
| Min Operating Radius | 803.81 ft in (245 m) |
| Max Elevating Angle | 80.75 degrees |
| Max Lift Capacity | 57330 lb (26004.46 kg) |
Dimensions
| Transport Length | 47.45 ft in (14460 mm) |
| Transport Width | 9.91 ft in (3020 mm) |
| Transport Height | 13.23 ft in (4030 mm) |
| Wheelbase | 192.92 in (4900 mm) |
| Ground Clearance | 2.01 ft in (610 mm) |
| Width W/ Outriggers Extended | 26.02 ft in (7930 mm) |
| Carrier/Base Length | 30183.73 ft in (9200 m) |
| Upper Structure Tail Swing Radius | 15.1 ft in (4600 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | Cummins QSL |
| Engine Model | C6.6 |
| Emissions Compliance | Tier 4F / Stage IV |
| Gross Power | 345 hp (257.3 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 1050.3 lb ft (1424 Nm) |
| Torque Measured @ | 1500 rpm |
| Displacement | 543.2 cu in (8.9 L) |
| Bore | 4.5 in (114 mm) |
| Stroke | 5.8 in (145 mm) |
| Crankcase Capacity | 22.7 L |
Operational
| Def Tank Capacity | 10.1 gal (37.9 L) |
| Operating Weight | 129973.6 lb (58955 kg) |
| Fuel Capacity | 90 gal (340.6 L) |
| Hydraulic System Fluid Capacity | 255 gal (965.2 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 160 amps |
| Tire Size | 26.5 x 25 |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 6 |
| Max Speed - Forward | 15.5 mph (24.9 km/h) |
| Max Speed - Reverse | 15.5 mph (24.9 km/h) |
