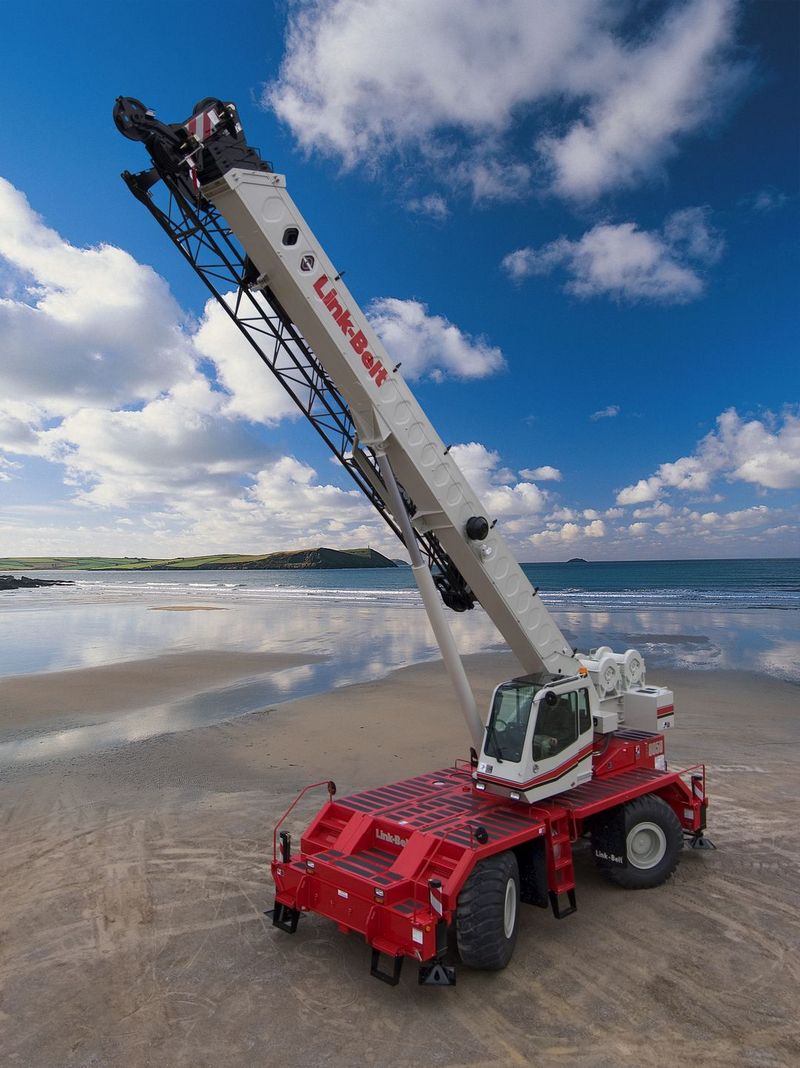

Link-Belt RTC8050
Browse All Link-Belt or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 35.5 ft in (10.82 m) |
| Max Height @ Max Raise Angle - No Jib | 110.01 ft in (33.53 m) |
| Max Elevating Angle | 78 degrees |
| Swing Speed | 2.6 rpm |
Dimensions
| Transport Length | 46.59 ft in (14200 mm) |
| Transport Width | 10.86 ft in (3310 mm) |
| Transport Height | 12.83 ft in (3910 mm) |
| Wheelbase | 151.19 in (3840 mm) |
| Width W/ Outriggers Extended | 24.02 ft in (7320 mm) |
| Carrier/Base Length | 27066.93 ft in (8250 m) |
| Upper Structure Tail Swing Radius | 11.52 ft in (3510 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | Cummins |
| Engine Model | 6CT8.3 |
| Gross Power | 210 hp (156.6 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 567 lb ft (768.8 Nm) |
| Torque Measured @ | 1500 rpm |
| Displacement | 504 cu in (8.3 L) |
| Bore | 4.5 in (114.1 mm) |
| Stroke | 5.4 in (135.2 mm) |
| Crankcase Capacity | 22.4 L |
Operational
| Operating Weight | 13000 lb (5896.8 kg) |
| Fuel Capacity | 100 gal (378.6 L) |
| Hydraulic System Fluid Capacity | 170 gal (643.6 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 130 amps |
| Tire Size | 29.5 X 25 |
Transmission
| Transmission Type | Power shift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 20.3 mph (32.7 km/h) |
