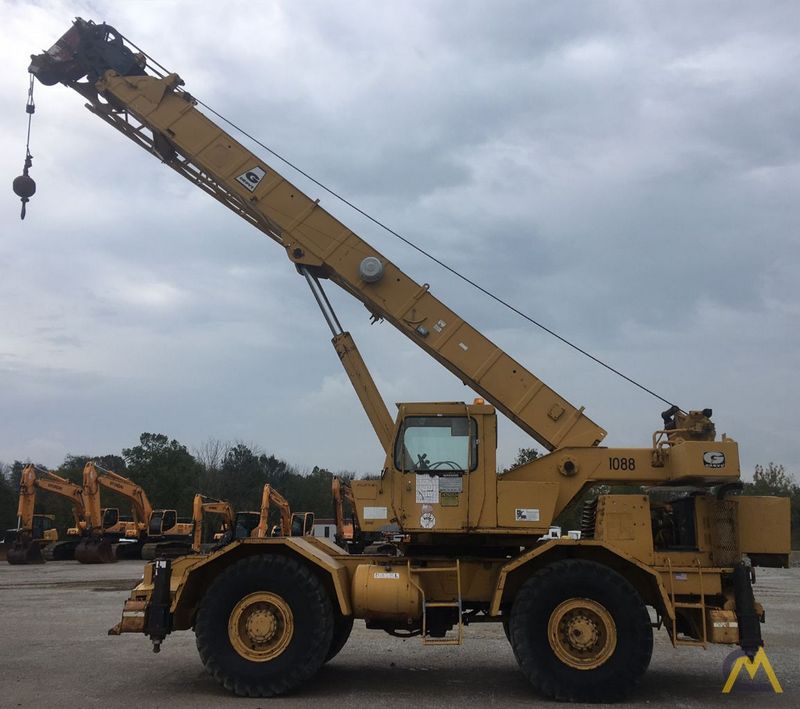

Grove RT625
Browse All Grove or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 32 ft in (9.76 m) |
| Max Height @ Max Raise Angle - No Jib | 80 ft in (24.39 m) |
| Min Operating Radius | 12 ft in (3.66 m) |
| Max Elevating Angle | 75 degrees |
| Max Operating Radius | 100 ft in (30.48 m) |
| Number Of Sections | 3 |
| Max Lift Capacity | 50000 lb (22679.62 kg) |
| Swing Speed | 2.6 rpm |
Dimensions
| Transport Length | 39.96 ft in (12178 mm) |
| Transport Width | 8.02 ft in (2443 mm) |
| Transport Height | 11.63 ft in (3543 mm) |
| Wheelbase | 12.01 in (3658 mm) |
| Ground Clearance | 1.34 ft in (406 mm) |
| Width W/ Outriggers Extended | 20 ft in (6096 mm) |
| Carrier/Base Length | 24.51 ft in (7468 m) |
| Upper Structure Tail Swing Radius | 11.49 ft in (3502 mm) |
Engine
| Number Of Cylinders | 8 |
| Engine Make | Cummins Diesel |
| Engine Model | V504C |
| Net Power | 156 hp (116.4 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 339 lb ft (459.7 Nm) |
| Torque Measured @ | 1900 rpm |
| Displacement | 504 cu in (8.3 L) |
| Bore | 4.7 in (117 mm) |
| Stroke | 3.8 in (95.2 mm) |
| Aspiration | natural |
Operational
| Operating Weight | 54120 lb (24548.5 kg) |
| Fuel Capacity | 60 gal (227.2 L) |
| Hydraulic System Fluid Capacity | 137 gal (518.7 L) |
| Cooling System Fluid Capacity | 10.6 gal (40.2 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 90 amps |
| Tire Size | 16.00x25 28PR |
Transmission
| Transmission Type | remote mounted full powershift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 6 |
| Max Speed - Forward | 23.2 mph (37.4 km/h) |
