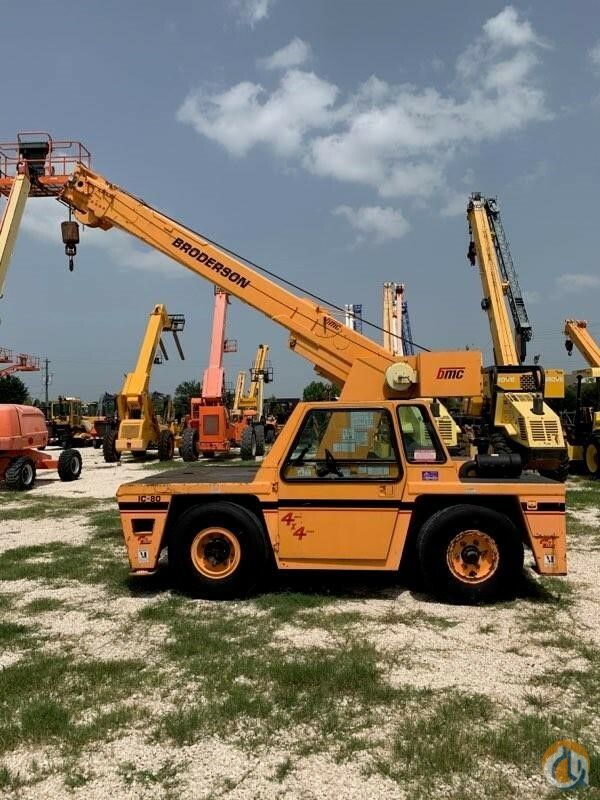

Broderson IC80-3G
Browse All Broderson or Rough Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 20 ft in (6.1 m) |
| Max Height @ Max Raise Angle - No Jib | 37.42 ft in (11.41 m) |
| Min Operating Radius | 5 ft in (1.53 m) |
| Max Elevating Angle | 70 degrees |
| Max Operating Radius | 40 ft in (12.2 m) |
| Number Of Sections | 3 |
| Max Lift Capacity | 18000 lb (8164.67 kg) |
| Swing Speed | 2 rpm |
Dimensions
| Transport Length | 17.73 ft in (5404.11 mm) |
| Transport Width | 6.5 ft in (1981.2 mm) |
| Transport Height | 7.25 ft in (2209.8 mm) |
| Wheelbase | 7.17 in (2185.42 mm) |
| Ground Clearance | 0.58 ft in (176.79 mm) |
| Width W/ Outriggers Extended | 9.58 ft in (2919.99 mm) |
| Carrier/Base Length | 12.81 ft in (3904.49 m) |
| Upper Structure Tail Swing Radius | 4.76 ft in (1450.85 mm) |
Engine
| Engine Model | GM 3.0 EFI |
| Gross Power | 69 hp (51.5 kw) |
| Max Torque | 163 lb ft (221 Nm) |
| Displacement | 181 cu in (3 L) |
Operational
| Operating Weight | 16660 lb (7556.9 kg) |
| Fuel Capacity | 20 gal (75.8 L) |
| Hydraulic System Fluid Capacity | 25 gal (94.7 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 66 amps |
| Tire Size | 10.00x15 |
Transmission
| Transmission Type | powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 20 mph (32.2 km/h) |
| Max Speed - Reverse | 20 mph (32.2 km/h) |
